Technical Specifications
Model
SI-1020
SI-1020E
SI-1020T
PCB
Specifications
PCB Transfer Size
50mm*50mm-510mm*460mm
50mm*50mm-510mm*460mm
Single Board Mode 50mm*50mm-510mm*600mm
Double Board Mode 50mm*50mm-510mm*330mm
PCB Inspection Size
50mm*50mm-510mm*460mm
50mm*50mm-510mm*460mm
Single Board Mode 50mm*50mm-510mm*600mm
Double Board Mode 50mm*50mm-510mm*330mm
PCB Thickness Range
0.6-6mm
Maximum PCB Weight
10kg
Component Height
Top 25mm
Bottom 40mm
PCB Transfer Method
Belt Conveyor
Edge Width
3mm
Optical
Specifications
Camera Pixel
26M Industrial Area Color Camera, Cell:2.5um
Recognition Accuracy
10um
Light Source Solution
Four-color Integral Ring Light Source: White+Red Green Blue
Optical Lens
Double-sided Telecentric Lens, 0.256x Magnification
Camera Field of View
26MP@10um: 50mm*50mm
Inspection Related
Scanning Speed
0.3sec/FOV
Component Inspection
Missing, Wrong, Misplaced, Standing, Polar Reverse
Solder Inspection
Multi-solder, Less-solder, Connected-solder, False-solder
Component Library
NA
Special Feature
One-key Programming
Device
Specifications
Device Working Mode
Standard SMEMA Front and Rear Communication Port
Front and Rear Device Docking Height
880mm-920mm
Front and Rear Device Communication Protocol
One-key Programming
Storage Memory
64G
128G
Hardware
Specifications
Storage Memory
Configuration 1-Enterprise Edition: CPU: intel i7, Graphics Card: NVIDIARTX4060Ti, Storage: Lenovo M.2 Solid State 512G +4T Mechanical Hard Disk, Motherboard: Advantech Industrial
Motherboard, Operating System: window 10;
*Adjustment of configurations is available due to actual situation
Configuration 2-Flagship Edition: CPU: intel i9, Graphics Card: NVIDIARTX4060Ti,
Storage: Lenovo M.2 Solid State 512G +4T Mechanical Hard Disk, Motherboard:
Advantech Industrial Motherboard, Operating System: window 10
*Adjustment of configurations is available due to actual situation
Monitor
24-inch Monitor
Board Width Adjustment
Automatic/Manual
Motion Control
Ball Screw+Servo Motor

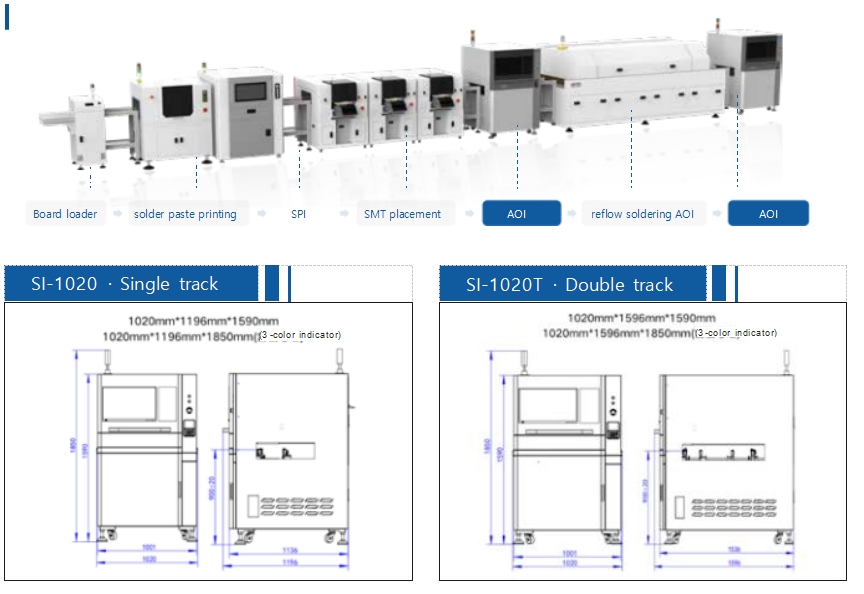

Device Size
Device Weight
Approximately 600KG
Approximately 800KG
Electric and Environment
Power Supply: Power Source
L+N+G
Power Supply:
Voltage/Frequency
AC220V±10%/50Hz
Power
2.7KW
3KW
3KW
Gas Supply
0.4-0.7Mpa,5L/min
N.A
0.4-0.7Mpa,5L/min
Operating Environment
Temperature 10~30°C, Relative Humidity 35~80%

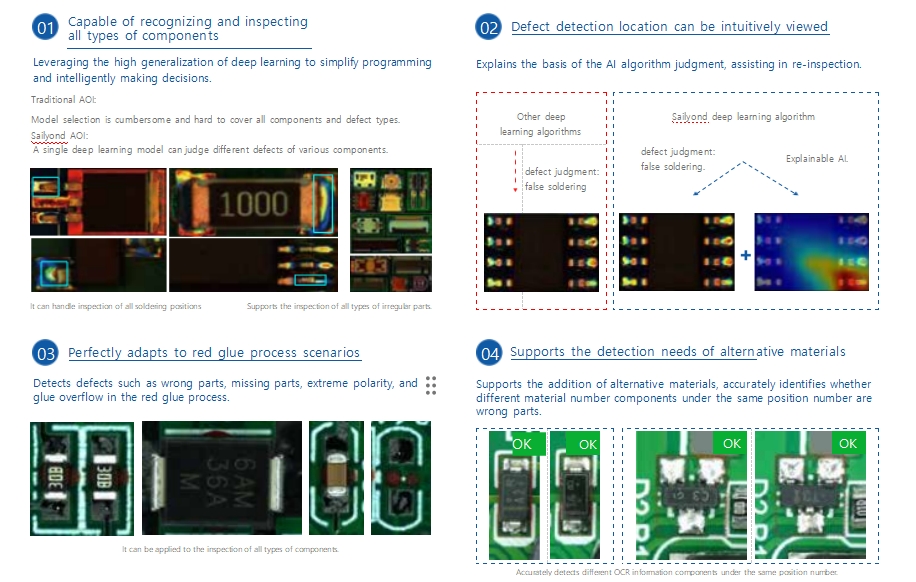

Feature Highlignts
Application Scenarios
