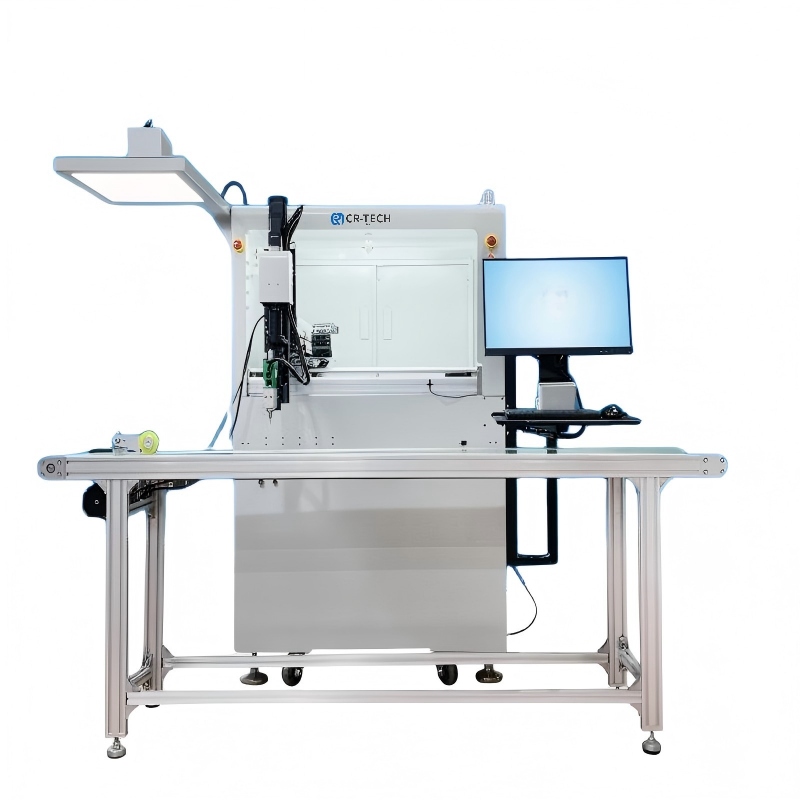

Vision-guided dispensing machine CR-D50
PRODUCT DETAIL
Feature:
●No tooling fixtures or jigs are required.
Image:
Specification:
|
技术参数
technical specification
|
||
|
机架外型尺寸L*W*H
The external dimensions of the rack are L*W*H
|
L1085mm*W820mm*H1650mm | |
|
重复精度
Repeatability accuracy
|
±0.02mm | |
|
轴数
Number of axes
|
5轴/独立控制
5-axis/independent control
|
|
|
CCD视觉相机
CCD vision camera
|
1套，独立悬挂
1 set, independent suspension
|
|
|
相机识别范围
Camera recognition range
|
400*350mm | |
|
调节驱动方式
Adjust the driving mode
|
精密丝杆+精密滑轨
precision lead screw + precision slide rail
|
|
|
控制方式
Control mode
|
工控机+显示器
industrial computer + monitor
|
|
|
工作环境温度
Working environment temperature
|
-20°C--+35°C | |
|
输入电源
Input power supply
|
AC220V 50-60HZ | |
|
悬臂长度
Cantilever length
|
500mm | |
|
过板尺寸
Plate crossing size
|
L350×W320×H120mm | |
|
总功率
Total power
|
2KW | |
| 整机重量 | 480KG | |
|
最大速度
Maximum speed
|
800mm/s | |
|
胶桶容量
Capacity of the rubber bucket
|
原包装2600ml
original packaging 2600ml
|
|
|
点胶频率
Dispensing frequency
|
1-3次/秒
1-3 times/second
|
|
|
点胶阀
Dispensing valve
|
1把硅胶回吸式点胶阀(H-N02)
1 piece of silicone back-suction dispensing valve (H-N02)
|
|
|
灵活性
Flexibility
|
5轴独立控制/针头独立旋转倾斜(电动调节)
5-axis independent control/needle tip independent rotation and tilt
|
|
|
适用线体
Applicable line body
|
高度：750±20mm,皮带宽度：400mm
height : 750±20mm, belt width: 400mm
|
|
