Feature：

1. Equipped with standard spray, preheating and welding units, the entire welding process can be completed in a smaller machine space.
2. The equipment adopts selective wave soldering process, and the welding quality is high.
3. Small footprint, saving installation space.
4. Using the latest version of operating software, the human-machine interface is friendly and the operation is simple and easy to understand.
5. Real-time monitoring of the welding process and process recording.
6. Foolproof operation, more convenient to use. The welding consistency is good and the quality risk is reduced.
7. It adopts a standard electromagnetic pump tin furnace, which has no wearing parts and is easy to maintain.

Advantageous:

a All in one machine, in same XYZ motion table combine selective fluxing and soldering, compact & full function.

b PCB board movement, fluxer nozzle and solder pot fixed.

c High quality soldering.

d Can used beside production line, flexible for production line forming.

e Full PC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type ,n2 temperature etc, best trace-ability and easy to get repeat soldering quality.

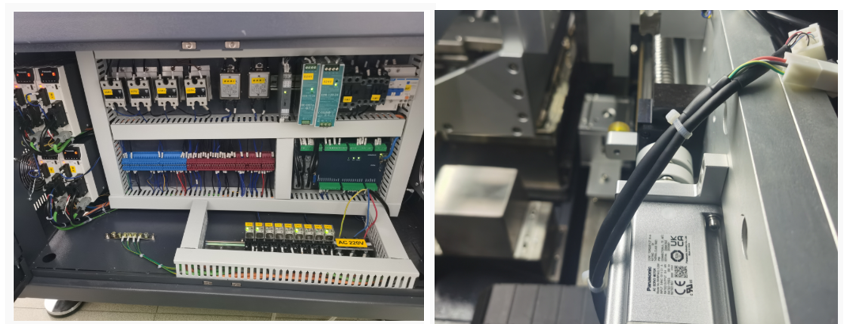

Image:

Specification:

Model	CR-300
General
Dimension	L1220mm * W1000mm * H1650mm (not including base)
General power	5kw
Consumption power	1--3kw
Power supply	single phase 220V 50HZ
Net weight	380KG
Reuiqred air source	3-5 Bars
Required air flow	8-12L/min
Required N2 pressure	3-4 Bars
Required N2 flow	> 2 cubic meters/hour
Required N2 purity	》99.998%
Required exhausting	500--800CMB/H
Carrier or PCB
Carrier	can be used as needed
Max solder area	L400 * W300MM （size can be customized）
PCB thickness	0.2mm-----6mm
PCB edge	>3mm
Controlling & conveyor
Controlling	Industrial PC
Loading board	Manual
Unloading board	Manual
Operating height	900+/-30mm
Conveyor up clearance	100MM
Conveyor bottom clearance	30MM
Motion table
Motion axis	X, Y, Z
Motion control	Servo control
Position accuracy	+ / - 0.1 mm
Chassis	Steel structure welding
Flux management
Flux nozzle	jet valve
Flux tank capacity	1L
Flux tank	flux box
Preheat
Preheat method	Bottom infrared preheating
Heater’s power	3kw
Temperature range	25--240c degree
Solder pot
Standard pot number	1
Solder pot capacity	15 kgs /furnace
Solder temperature range	PID
Melting time	30--40 Minutes
Max solder temperature	350 C
Solder heater	1.2kw
Solder nozzle
Nozzle dim	custom shape
Nozzle material	alloy steel
Standard equipped nozzle	Standard configuration: 5 pieces/furnace (inner diameter 4mm x 3pcs, 5mm, 6mm)
N2 management
N2 heater	standard
N2 temp range	0 - 350 C
N2 consumption	1---2m3/h/nozzle
