2:The "scraper cleaning machine" uses the scraper to circulate in the rotating basket and is subjected to high-pressure spray cleaning, ultrasonic cleaning, rolling rinsing, high-flow fan hot air drying and other technologies to ensure the cleaning effect.
Feature:
①Innovative appearance design, adopting rotary ultrasound, additional secondary spraying, comprehensive and thorough cleaning;
②Equipped with a pneumatic pump, it can automatically add and discharge liquid;
③Cleaning and rinsing real-time filtering system, the tin beads after cleaning will no longer return to the scrapersurface;
④Equipped with a filtering device to filter and absorb solder paste so that the cleaning agent can be recycled;
⑤The cleaning room is equipped with a visual window, and the cleaning process is clear at a glance;
⑥PLC fully automatic control, multipleprogramsetting modes can be selected, simple operation and convenient maintenance;
⑦The equipment has low liquid consumption, low power consumption, no pollution, and the overall body is made of 304# stainless steel with good corrosion resistance;
⑧Unique scraper installation method, design to prevent the scraper from slipping during operation.

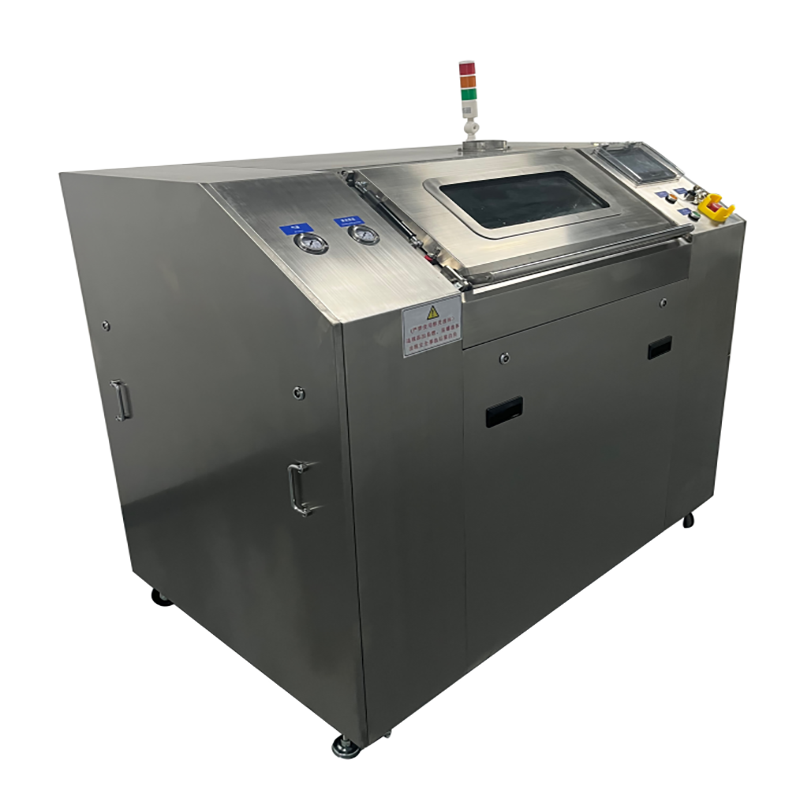

Image:
Specification:
|
Diameter of cleaning basket |
210mm, special specifications can be customized |
Cleaning principle |
High-pressure spray cleaning + low-speed rotary immersion ultrasonic cleaning |
|
Cleaning and rinsing liquid tank capacity |
60L |
Optimal capacity of cleaning and rinsing liquid tank |
45L |
|
Coarse washing time |
1-3 minutes (for reference only) |
Ultrasonic cleaning time |
3-8 minutes (for reference only) |
|
Secondary spray cleaning time |
1-3 minutes (for reference only) |
Rinse and wash time |
1-3 minutes (for reference only) |
|
Drying time |
3-7 minutes (for reference only) |
Liquid heating temperature |
Room temperature - 80P (set as required) |
|
Ultrasonic power |
1.5KW |
Hot air drying temperature |
Room temperature - 80P (set as required) |
|
Solvent tank heating power |
7KW |
Dry heater power |
6KW |
|
Gas source |
0.4-0.7(Mpa) |
Water inlet and outlet |
1-inch quick-junction interface |
|
power supply |
AC380V 3P, 50/60HZ 16.5KW |
Machine weight |
320KG |
|
Machine size |
L1400xW950xH1350±30mm |
Exhaust port size |
Φ120*25H(mm) |
|
Level 3 filter system |
Level 1 filter mesh (filter impurities and labels) Level 2 filter bag (filter small particles and solder paste) Level 3 filter element 5um (filter micro particles and solder paste) |
||
|
Number of cleanings at one time |
200-600mm length, clean 12-6 pieces respectively |
||
