Feature:
Precise positioning
SPI inspection machine uses a distortion-free telecentric lens, a multi-reference point calibration method, and automatic detection window positioning, including dual positioning of the pad and the body, which solves the frame deviation problem caused by board deformation and greatly reduces false alarms!
Incoming material differences
SPI inspection machine in smt Uses multi-level color picking, which is more compatible with material color differences! Effectively avoid false alarms caused by material color differences!
Cost advantages brought by centralized remote management
After improving the pass rate, centralized management can greatly reduce the need for personnel!
Proactive service/real-time monitoring
Remote customer service can monitor equipment data anomalies in real time and provide 24-hour full-time monitoring to ensure that production companies can detect production problems in time and improve production efficiency.
Programmable Structured Grating (PSLM) technology
Uses phase modulation profilometry (PMP) technology to achieve three-dimensional measurement of precision printed solder paste, greatly improving measurement accuracy while ensuring high-speed measurement.
High-resolution image processing system
Provides a variety of different detection accuracy such as 2.8ΜM, 4.5ΜM, 5ΜM, 7ΜM, 8ΜM, 10ΜM, 12ΜM, 15ΜM, 18ΜM,
20ΜM, etc. to meet the customer’s product diversity and detection speed requirements.
axis dynamic compensation + telecentric lens static compensation
The high-cost telecentric lens and dedicated software test algorithm are used to solve the problems of squint and deformation of ordinary lenses, greatly enhancing the detection accuracy and detection capabilities. The industry-leading dynamic compensation + static compensation FPC warping is achieved.
High-precision integrated control platform
High-strength steel integrated structure, standard servo motor with high-precision grinding-grade ball screw and guide rail, high-speed and stable movement. The optional linear motor and high-precision grating ruler can perform ultra-precise and fast measurements of 03015 component solder paste, and the repeatability can reach 1UM.
Five-minute programming and one-button operation for spi inspection
By importing the GERBER module and the friendly programming interface, engineers of any level can independently and quickly perform programming accurately. The one-button operation designed for operators also greatly reduces the training pressure.
Powerful process analysis (SPC)
Real-time SPC information display provides users with strong quality control support. A complete and diverse SPC tool allows
users to see at a glance. And supports data output in different formats.

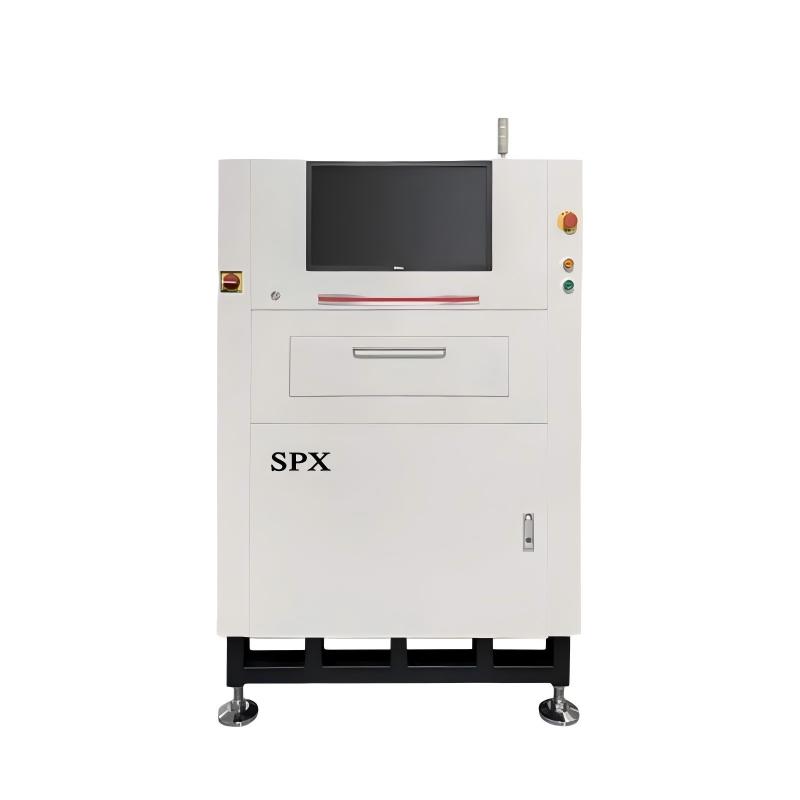

Image:
Specification:
Model
Single rail Dual rails
Bot Inspect
Bothsides Inspect
Camera
Standard:12million piozel industrial camera
Lens
Telecentriclens
Light source
RGB three-colorlight
Standard:15μm
Standard:16.5μm
Resolution
Optior 10μm
Optionc 10μm
Field ofview
10μm:24-20mm 15μm36*30mm 25μm57*48mm 10μm:40*30mm 16
.5um:6448mm
Single rail:460mm^560mm
PCB size
460mm*350mm Dual rials:460mm^300mm
510mm*460mm
PCB Thickness 03~5mm
Clipwidth
3mm
Factorystandard:TOP:30mm BOT:45mm
Factory Standard:BOT30mm
Clear height
Max adjustable:TOP:45mmBOT:45mm
Max adjustable BOT:50mm
Max adjustable:TOP:B0mm BOT:50mm
Irspectweight
3KG
5KG
Inspect speed
230~300ms/FON
XYaxcis
Servo motor
Operate system
Windows1064bit
Voltage
AC220V,50/60Hz
Pressure
0.5Mpa
Height
900±20mm
900±20mm(can be customized)
Weightikg)
700 800
800
1200
L1080*W1493H1615mm
L892W1090+H1585mm L892W1445^H1585mm
L10B0-W1493H1615mm
SMTinspection items
aged.short oruit insufcient tin,cld
solder joint,empty sokderjoint,cverflow glue,
THT test items
no tin,insufficienit tin,exresive tin,voids,short cirauits,exposed copper,false soldering,buried pires,tin balls,foreign matter
