Coating Machine
3D printing digital encapsulation and coating equipment
The 3D printing digital packaging coating equipment innovatively integrates 3D printing technology into the field of electronic packaging protection. It is a new generation of packaging protection equipment specially designed for electronic components such as PCBA and FPC. The equipment uses UV glue as the forming base material. Through precise spraying and multi-layer stacking technology, it builds a customized 3D protective structure in the component protection area, achieving high-strength and highly adaptable electronic packaging protection. It overturns the traditional coating process and meets the high-precision and high-efficiency electronic manufacturing production requirements.
PRODUCT DETAIL
Feature:
1.3D digital packaging technology
Product advantage:
1. Precise packaging, no need for masking
Key Technician:
The self-developed glue system is deeply coordinated with the equipment

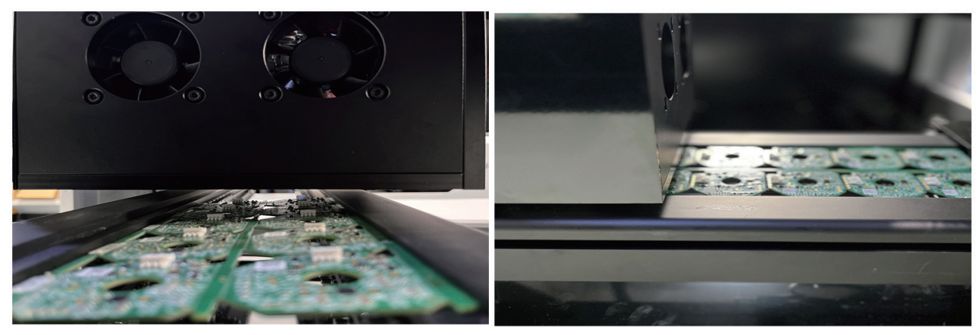

Image:
Specification:
| Category | Item | Details | Remarks |
| Package thickness/speed | The single-layer package thickness | 20/40/80μm | Adjustable |
| The thickness of multi-layer packaging | reach 3mm of the total thickness | the total thickness of multi-layer stacking | |
| The fastest single-layer packaging speed | 15s | 350*350 mm | |
| Parameter | Number of motion axes | 3 |
-
|
| Moving speed (XY) | 200/300/400 mm/slow/Medium/high speed | - | |
| Accuracy | Precision packaging accuracy | ±0.1 mm | - |
| Repeatability accuracy | ±0.02 mm | - | |
| Working range: | X-axis, Y-axis, maximum working surface | 350*350 mm 3kg | - |
| PCBA character | The maximum size of PCBA | 350*350 mm | - |
| 元件最大高度 | The recommended maximum height of the component is ≤ 20mm | - | |
| System control | software system | Windows operating system Win10 | - |
| Power supply | 220V/50/60Hz | - | |
| The ambient temperature range | 18-28℃ | - | |
| Compressed air | 0.6Mpa above | - | |
| Relative air humidity | 30-60%RH | - | |
| The equipment dimensions | length, width and height | 1120*1520*1740 mm | - |
| Weight | 690 kg | - | |
| The main component | Nozzle | the industrial piezoelectric nozzle | - |
| The visual positioning system | 5 million pixels and a high-precision telecentric lens | - | |
| Drive motor (X/Y/Z) | XYZ axis servo motor | - | |
| The rubber circuit system | independent double circulation rubber circuit | - | |
| glue curing system | Double-headed UV LED | - | |
| motion | Precision linear guide rails | - | |
| Track data | The speed transmission | 2-10 m/min | - |
| The edge space of the PCB | ≥5mm | - | |
| The conveying height | 900±20 mm | - | |
| Applicable material characteristics | Viscosity | 20-40cps | working temperature30℃~55℃ |
| Surface tension | 25-32dyn/cm | - | |
| Particle size | D90≤300 nm | - | |
| P H value | 6-8 | - | |
| Curing method | U V curing | - |
