Feature:

● The machine can meet the common brand solder paste
(500g/bottle)storage.
●The machine has automatic warming module,automatic
mixing module,automatic storage module,automatic inand out of storage module,bar code identificationmodule.
●The machine can meet the solder paste storage capacity
of 300 bottles,automatic warming capacity of 65 bottles,the maximum number of storage cache up to 11 bottles.
●The machine can meet the incoming and outgoing beats
≤10S.
● The machine can automatically control the temperature in
the range of 0~10 degrees,the temperature can be set,and the accuracy can reach ±1 degree.
●The mixing speed of the machine can be adjusted,the
maximum speed can reach 800R/MIN,and the mixingtime can be flexibly set according to demand.

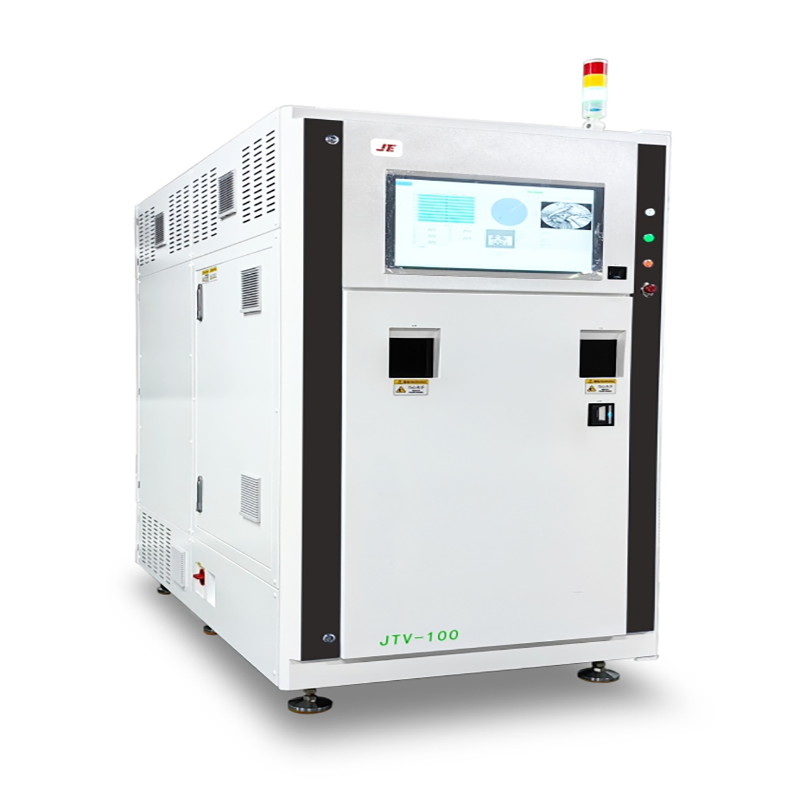

Image:

Specification:

产品名称 Product name	智能锡膏存储柜 Intelligent solderingpaste storage
设备型号 Mode1 No	JTV-100
基本规格 Basic specifications
设备尺寸 Dimension	940L*1750W*1920H
电源规格 Power spec	220V/50HZ
设备净重 Net weight	1200KG
适用锡膏规格 Applicable solderpaste specifications	底部直径小于等于62毫米、高度小于80毫米，500G/瓶 Bottom diameter less than or equal to 62 mm.height less than 80 mm.500G/bottle
节拍 Beat	入库小于15S,出库时间小于10s In-put storage time is less than 15s andout-putstorage time is less than 10s
存储容量 Storage capacity	300瓶 300 bottles
回温容量 Warming capacity	65瓶 65 bottles
入料 Material input	入料缓存11瓶 Input cache 11 bottles
出料 Material output	出入口分开 Entrance and exit separately
自动搅拌 Automatic mixing	1000R/MIN公转、大于200R/MIN自转 1000R/MIN revolutiongreater than 200R/MIN rotation
