SMT Line Automatic Conveyor Machine
conveyor PCBs between two differabt equipments ordevices.Also good for buffer,inspection,test on PCBsor manual inserting components to PCBS.
PRODUCT DETAIL
Feature:
a)PLC ControlSystem
b)Dust cover for external isolation
c)Adjustable wide way

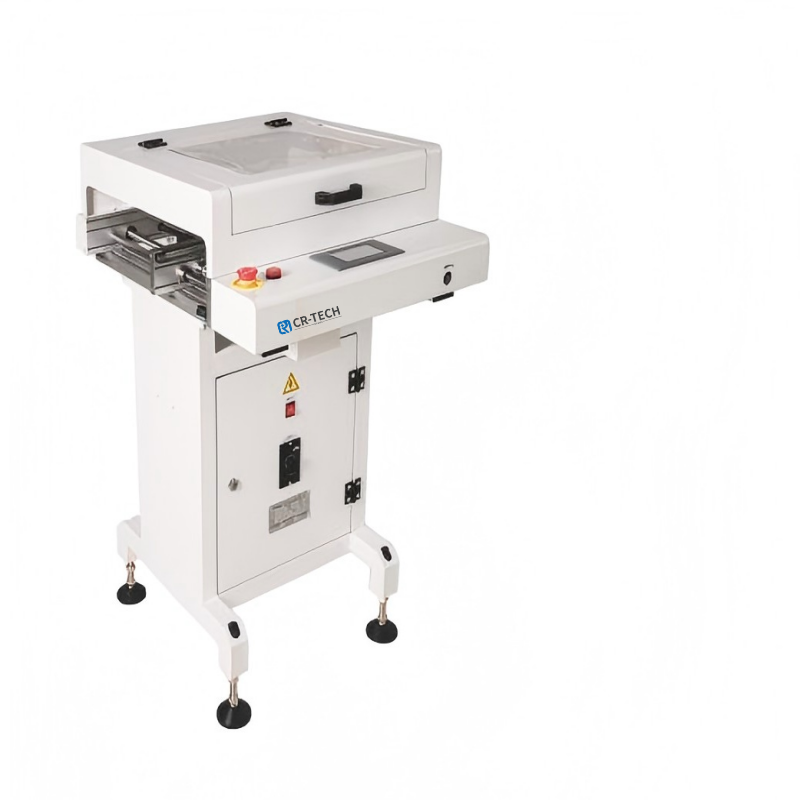

Image:
Specification:
| Model | 型号 | CR-600-1MA |
| Overall Dimension | 外形尺寸 | (L)600*(W)780*(H)1050mm(With dust cover) |
| Control System | 控制方式 | PLC |
| PCB Conveyor Direction | PCB传输方向 | From left to right |
| Track width | 传送宽度 | Min50-Max500mm |
| Conveyor speed | 传送速度 | 1.5~8M/min adjustable |
| PCB size(L*W) | PCB尺寸(长X宽) | Min80*50-Max520*500mm |
| Height | 传输高度 | 920±30mm |
| Fluorescent | 日光灯 | Option (L) |
| Placing table | 置物台架 | Option (S) |
| Adjustable wide way | 调宽方式 | Manual width adjustment, automatic width adjustment (A) |
| Dust cover | 防尘罩 | Option(C) |
| Work bench | 工作台板 | Option(T) |
| Cooling fan | 风扇罩 | Option(F) |
| Band detection | 带检测 | Option(R) |
