Feature:

Smart plug-in workbench

Clear indications for component assembly, soldering, etc, integrated operation of mutiple station, and integrated operation of other processes to work together instead of the current process of plug-in operation instruction mode to dynamic guidance mode improve the accuracy of the operation to use it in a single station or in connection. It is suitable for a variety of application environments with a variety of feeding methods, or adapt to specific feeding mode according to requirements.

With simple program editing, using pictures or design files directly imported for offline programming mode, it quickly realizes offline programming. It can be freely distributed to an associated station or a plurality of decompositionstation for use, guiding operators to quickly find the precise indications and corresponding material supplies in the in the plug-in position, which improves the accuracy of plug-in and taking materials. The special polarity identification indications and illustrations amke the plug-in of directional components more accurate.

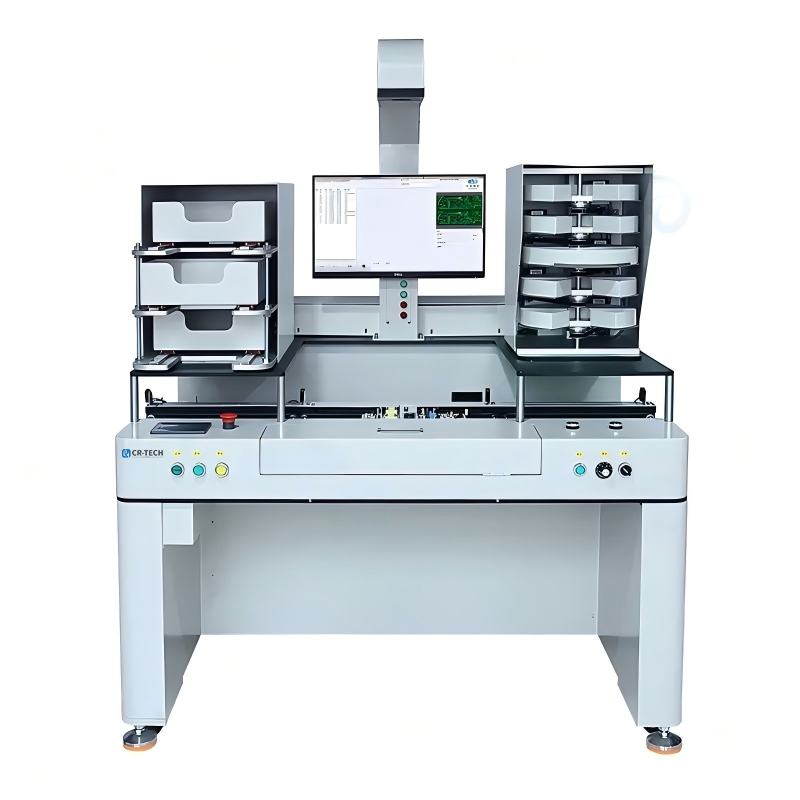

Image:

Specification:

Name	Configuration	Remark
Equipment dimension	L1300*W1100*H1700mm	It can be split according to the wire body
Indication spot diameter	Adjustable
Indication accuracy	±0.2mm
Barcode reading	Achievable	External barcode scanner
Indication range	350*350mm	Customizable adjustable format
Indication method	Manual trigger with settable time
Light source color	Red/green light	Self-selection
Industrial control system	Win10
Total power	0.8kw
Power requirements	220V/50Hz
Track height	750/900±20mm
Air pressure	0.4-0.6Mpa
Small material box	Charging 25 types of materials	Customizable and extendable
Large material box	3 types of materials	Customizable and extendable
Tubular material box	5n types of materials	Customizable and extendable
