Feature:
1:Optimized multi-functional conveyor (best positioning + no impact stopping), adopt a laser sensor rather than mechanical stopper to position. No rely on the PCB board size, shape, achieve the best positioning and no impact stop.
2:High Precision: Equipped with 6pcs of cameras: 1pc of Mark, 1pc of high precision, and 4pcs of high-speed recognition cameras, could effectively mount 0402-5050 components, beads, diodes, transistors, SOP, 45mm*45mm range pin pitch ≥0.3mm chip QFP-256, BGA etc.
3:Fast Speed: the max. mounting speed: 8000CPH, average mounting speed: 6000CPH.
4:Strong Stability: Panasonic Servo Motor and Drive, TBI precise linear guide and ball screw, Japan Vacuum generator, JUKI high-precise nozzles, automatic feeding integrated system and high-configuration IPC - High precision, strong stability, promise 24-hour mounting stably.

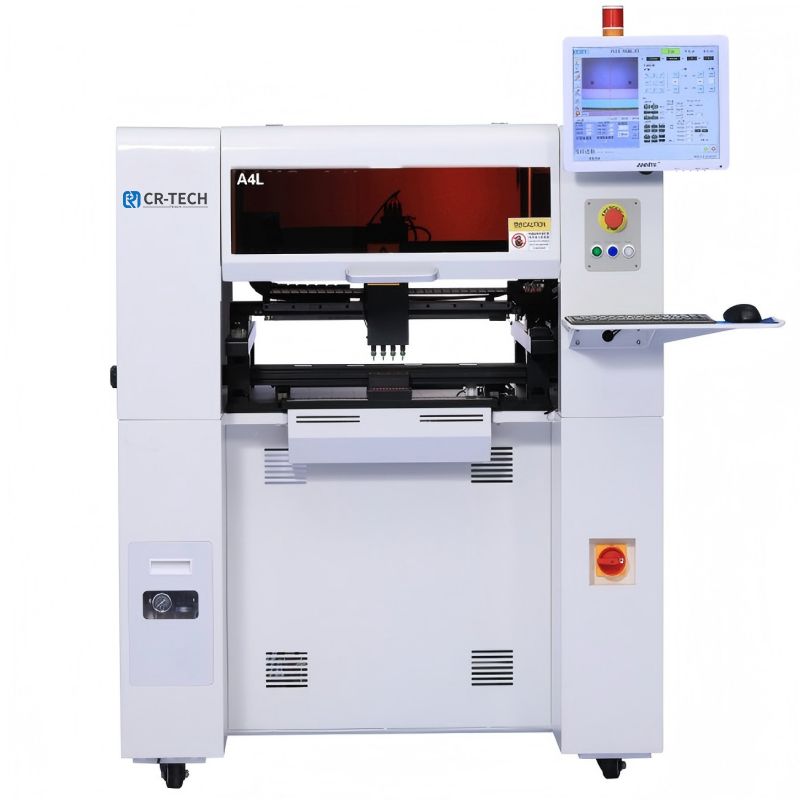

Image:
Specification:
|
Feeder No. |
46 (Front 20, rear 26) |
Product Weight |
450KGS |
|
Mounting Heads |
4 (No need to change Nozzle) |
XYZ Drive Guide Rail |
TBI High-precision heavy-duty straight-line guide rail |
|
Average Power |
600W |
|
|
|
Positioning Accuracy |
0.01mm |
Motion Drive System |
Panasonic High speed DPS driver |
|
Nozzle Buffering Range |
5.0mm |
Operating System |
Support Windows XP, Win7 operating system |
|
Power Supply |
220V, 50Hz |
Component Angle |
0~360°, synchronized rotation in motion |
|
Compressed Air |
0.5-06Mpa |
X/Y Running Mode |
Imported TBI high-precision ball screw + imported TBI heavy-duty linear guide |
|
Driving Motor |
Panasonic servo motor |
|
|
|
Recognition Method |
4 heads recognize synchronously |
Placement Mode |
Manual, semi-automatic, fully-automatic |
|
Nozzle Vacuum Source |
High-speed on-off vacuum generator with vacuum damage |
Alarm when open the cover |
Reducing speed or out of service |
|
Max. Circuit Board Area |
480x300mm |
Board Input Method |
Automatically connect loader and position PCB transmission |
|
XY Max. Movement Range |
556x680mm |
Rail Guide Adjusting Method |
Manual + Automatic |
|
Z Axis Max. Movement Range |
20mm |
Visual Display |
15" industrial control display ratio 4:3, resolution 1024x768 |
|
Belt Type Feeder |
8/12/16/24/32mm feeders, stick feeder |
Programming Mode |
Point-to-point programming, visual programming, PCB file coordinates inputting, etc. |
|
Max. Mounting Speed |
8000CPH |
|
|
|
Average Mounting Speed |
6000CPH (Visual) |
Recognition Camera No. |
1 Mark recognition camera, 4 high speed recognition camera, 1 high-precision recognition camera |
|
Dimensions |
1095x1165x1400mm |
|
|
|
Applicable Mounting Range: Suitable for 0402, 0603, 0805, 1206, LED lamp beads, diodes, transistors, SOT, 45mm*45mm range pin pitch ≥0.3mm QFP, BGA etc. |
|||
