Feature：

1. The stepping motor is used to drive the ball screw for the up and down movement. The accuracy of the motor is 0.1mm, and the soldering depth is accurate.

2. The circuit board floats on the tin surface for immersion tin, which is not affected by the depth of solder.

3. The lifting speed of the product to be dipped is adjustable, and the dipping angle of the circuit board is adjustable to reduce the surface tension and meet the process requirements.

4. It can automatically scrape off the surface oxide to the tin slag tank in each working cycle to improve the welding quality.

5. It can preheat the surface of the circuit board and flux to improve the activity and welding quality.

6. The soldering time can be adjusted arbitrarily from 1 second to 10 seconds

7. Imported heating tubes are used, which have been insulated and have a long service life. The temperature control adopts PID control with an accuracy of ±2

Dip soldering method:

As long as the substrate with good flux is placed on the needle holder, and then step on the foot switch, multiple pieces of various substrates can be soldered at one time. The angles are all controlled by microcomputer, completely simulating the principle of manual dip soldering, personnel training is not required, anyone can dip soldering operation, no skilled hands are required, the welding quality is stable, and the production efficiency can be improved.

Specification:

Product parameters:

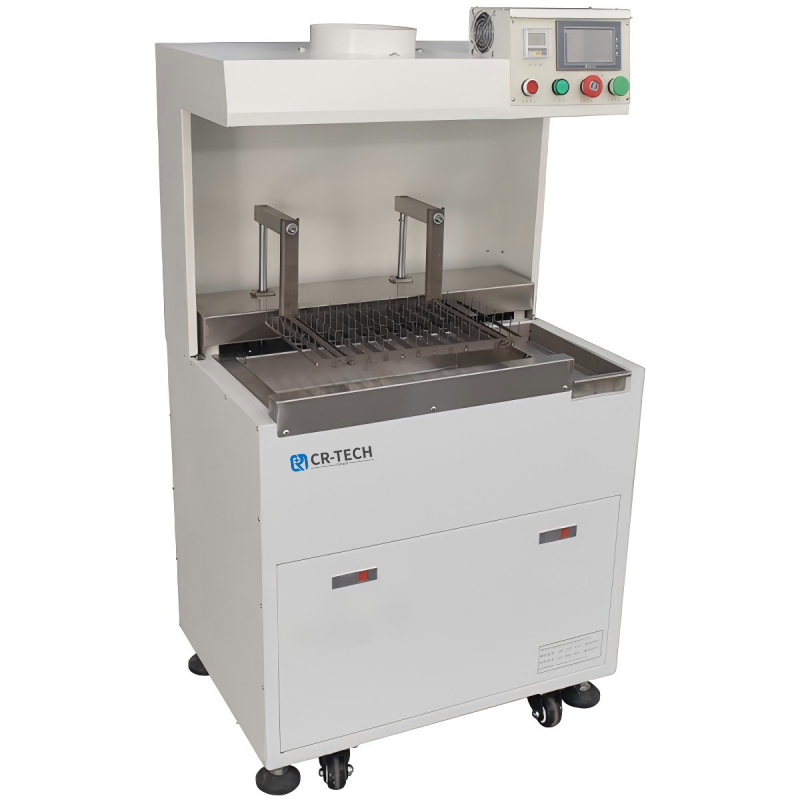

1. Brand: CRtech

2. Model: CR-4530F

3. Tin pot temperature: 0-350℃

4. Tin capacity: 75KG

5. Power supply: AC220 50HZ

6. Power: 4.5K

7. Tin furnace tank size: 450*350*75mm

8. Dial area: 390*260*300mm

9. Machine size: 750*530*1380mm

Function：

1. Suitable for circuit boards and general soldering products

2. Improve welding quality and imitate manual welding

3. Improve production efficiency, and batch products can be welded at the same time, which is about 4 times higher than manual
