Home > Products > Cleaning Machine
Cleaning Machine

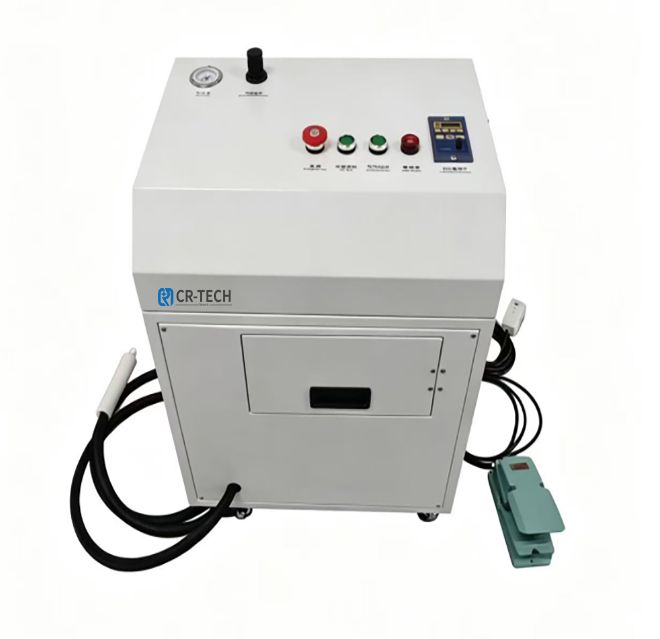

L type Handheld dry ice cleaning machine CR-D200
The dry ice cleaning machine is an efficient and environmentally friendly cleaning device, suitable for various industries and scenarios. It utilizes the low temperature and high-speed airflow of dry ice to quickly remove stubborn contaminants such as dirt, oil stains, and oxide layers. This not only ensures the cleaning effect but also avoids a series of problems brought about by traditional cleaning methods. The handheld dry ice cleaning machine independently developed by our company is mainly used for cleaning residual contaminants such as rosin and flux on the surface of circuit boards after SMT soldering. The equipment is easy to operate, and employees can easily get started. Moreover, it has a high cleaning efficiency and is bound to become the mainstream of zero-emission cleaning solutions for PCBA circuit boards in the near future.
PRODUCT DETAIL

Feature:

1. The machine is simple to operate and staff can learn to use it with ease.

2. Environmentally friendly and safe: The dry ice blaster uses dry ice pellets as the cleaning medium, causing no chemical reactions or secondary pollution, and posing no risk to the environment or human health.

3. Safe and reliable: The dry ice pellets used in the dry ice blasting machine cause no damage or scratches to the items being cleaned, nor do they cause any damage to the machine itself.

4. Energy-saving and emission-reducing: The dry ice pellets used in the dry ice blasting machine are a renewable resource, effectively reducing energy consumption and exhaust emissions during the cleaning process, thereby minimising the impact on the environment.

5. No Water or Cleaning Agents Required: Cleaning with a dry ice blaster eliminates the need for water or cleaning agents, thereby preventing the waste of water resources and the discharge of chemical substances, thus protecting the environment.

6. Long-lasting Results: Cleaning with a dry ice blaster ensures that the cleaning results remain effective over the long term, leaving no cleaning agent residues or causing secondary pollution, thereby providing a solid foundation for subsequent production work.


Image:

Specification:

Overall size

560(L)*400(W)*750(H)mm

Adapt to PCB board sizes

The length and width are not limited

Use dry ice

L140*W125*H250MM(about 5Kg)

Pressure range

0.1~0.8Mpa(adjustable parameter )

Pressure range

5-10KG

The capacity of the dry refrigerator

0.1-0.6KG/min(adjustable parameter )

Dry ice injection rate:

250W

Main motor power

0.4-0.7(Mpa)

Voltage/Frequency

AC220V(50-60HZ)

Weight

About 50KG

Ice drainage pipe

GTL1/2 Low-temperature dry ice dedicated with IP55 protection grade, imported electronic components
