Selective Soldering vs. Hand Soldering: Key Advantages & 3 Critical Pitfalls to Avoid When Buying

Intro
For years, through-hole components were the bottleneck of the PCB assembly line. The choice was often between expensive wave soldering pallets or slow, inconsistent manual soldering. Today, Selective Soldering has changed the game. But not all machines deliver what they promise.

If you are looking to scale quality while cutting labor costs, here is a breakdown of why selective soldering outperforms hand soldering—and the 3 non-negotiable features to check before you buy.

Part 1: Why Upgrade from Hand Soldering?

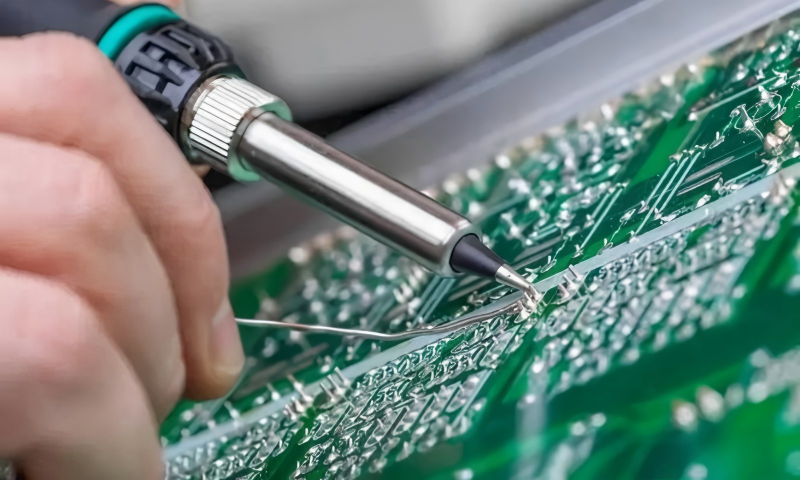

Hand soldering is flexible, but it does not scale. Here is the data-driven advantage of selective soldering machines:

1. Zero Rework & Consistency
The #1 cost in hand soldering is rework. Human tremor, fatigue, or angle errors cause bridges, cold joints, or insufficient wetting. A CNC-controlled selective soldering machine repeats the exact solder wave height, temperature, and dwell time for every pin, every shift. Result: Defect rates drop from >5% (manual) to <0.5%.

2. Protection for Heat-Sensitive Boards

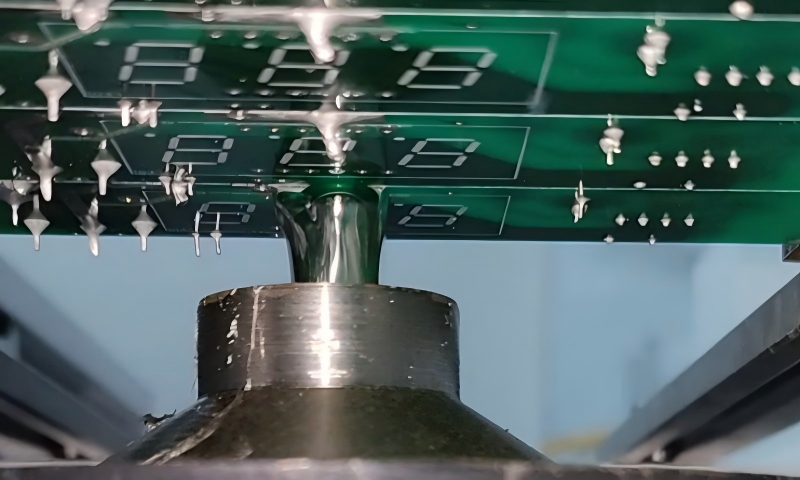

Modern PCBs often mix thick ground planes with tiny SMD components. Hand soldering a heavy connector requires a 400°C iron held for 4-5 seconds. That heat travels. With selective soldering, localized mini-wave heat exposure lasts only 1-2 seconds. Adjacent plastic connectors or LEDs remain untouched. No "shadow" damage.

3. Throughput Without Headcount
One operator can manually solder ~100-150 joints per hour. A single selective soldering nozzle handles 600-800 joints/hour. You don’t need three shifts of skilled technicians; you need one programmer and a loader/unloader.

Part 2: The "Buyer’s Dilemma" – 3 Hidden Traps

You have decided to go selective. Great. But many entry-level or used machines become paperweights within a year. Avoid these three traps:

Trap #1: Rigid Tooling (Lack of Flexibility)
The Mistake: Buying a machine with fixed, dedicated pallets for every PCB model.
The Problem: Your product mix changes. Every time you run a new board, you spend $500+ on a new pallet and wait 2 weeks.
The Solution: Demand tooling-free or universal carrier systems. Look for servo-driven conveyors with adjustable width and programmable support pins. The machine should handle a new job in 5 minutes, not 5 days.

Trap #2: "No Nitrogen Ready" – The Silent Productivity Killer
The Mistake: Saving $3,000-5,000 upfront by buying a machine without a nitrogen interface or flux management system.
The Reality: Without nitrogen (N2), your solder pot oxidizes 3x faster. You will buy new solder every 3 months instead of every year. Worse, oxidation increases dross and surface tension, causing micro-solder balls around fine-pitch connectors.
The Solution: Even if you don’t buy the N2 generator today, insist on pre-installed gas channels, M12 ports, and oxygen analyzer interfaces. "Retrofitting" later often costs double.

Trap #3: The "Closed-Box" Service Policy
The Mistake: Buying from a brand that treats the software and nozzle alignment as a trade secret requiring a $300/hour engineer visit.
The Reality: In selective soldering, nozzle alignment is daily maintenance. If you cannot change a nozzle and recalibrate Z-height in 10 minutes, your machine will sit idle for days waiting for a technician.
The Solution: Ask for video proof. Can your local mechanic perform daily solder pot cleaning and nozzle change using standard tools? Insist on a remote diagnostic software package. Good suppliers offer free WhatsApp/TeamViewer support for 90% of alarms. Bad ones send a technician after 72 hours.

Conclusion

Moving from hand soldering to selective soldering is a leap in quality and efficiency. But the machine must fit your future, not just today’s board. Prioritize tooling flexibility, confirm N2 readiness (even as an option), and audit the service response protocol before signing.

Need a checklist? Contact us to see a live demo of our open-architecture selective soldering platform—no pallets, N2-ready, and with remote support included.
