Feature:

Overview of program advantages:

• All in one machine, can accommodate 3 boards or 3 pallet, one in spray flux, one is preheating, another in soldering, get bigger production yield.
• Individual spray flux table & soldering table.
• High soldering quality.
• SMEMA in line connection capable.
• Full PC control. All parameters can set in PC and saved to PCB menu, like moving path, solder temperature, flux type, solder type, N2 temperature etc, best trace-ability and easy to get repeat soldering quality.

Machine explanation

Part1: Software

• All software system developed by company from USA, with our 8 years experience about selective soldering, base on Windows7 system, with good trace-ability.
• Use scanned picture as background for path programming, moving speed, dwell time, empty move speed, Z height , wave height etc all programmed for different solder site.
• Show solder process with live on camera.
• Critical parameters are totally under monitoring by PC software, like temperature, speed, pressure etc.
• Can upgraded to be with auto wave height calibration function, to check & calibrate wave’s height after every certain pcb, so to keep a very good stability of wave.
• About PCB’s menu in soldering machine, all information will be stocked in one file. It will include PCB dimension and picture, used flux type, solder type, solder nozzle type, solder temperature, N2 temperature, motion path and each site’s related wave height and Z height etc. When customer to solder same PCB, they can get full information about how it’s done in history, also easy for trace.

Part2: motion system

• Self design motion table with cast aluminum, lighter weight with quick motion speed.
• Panasonic servo motor & driver provide stable driving power, with screw pole & linear guild rail for guidance. Precious position, less noise, stable movement.
• With dust proof plate above motion table, so to avoid flux or solder drop to damage ball screw.

Part 3: fluxing system

• Standard equipped with imported jet valve to get precious fluxing result with small flux dot, please note flux solid content should be less than 10%.
• Flux is stocked by PP plastic pressure tank, make sure pressure stable without influenced of amount of flux.

Part 4: Preheat

• At conveyor top & bottm equipped with IR preheating. Position is adjustable.
• Heating ratio is adjustable by PC, from 0 ---100%

Part 5: dual solder pot

• one solder pot system with individual temperature control, N2 temperature control, wave height control. All installed in one same table. The distance between two solder pot can be adjusted.
• Solder temperature, N2 temperature, wave height, wave calibration etc all able to set in software.
• Solder pot is made of Ti, not leakage. With cast iron heater outside, robust & quick heat up.
• Solder pot is wired with quick connector. When exchange solder pot without re-wiring required, just plug & play.
• N2 online heating system, to wet the soldering perfectly and reduce the solder dross.
• With solder level checking & alarm.

Part 6: conveyor

• Stepper motor drive for fixed & movable conveyor.
• With stainless steel roller for conveyor, not wearable with long term usage. Also make sure solder nozzle can approach to board’s edge 3mm.
• With PCB clamping system at conveyor.

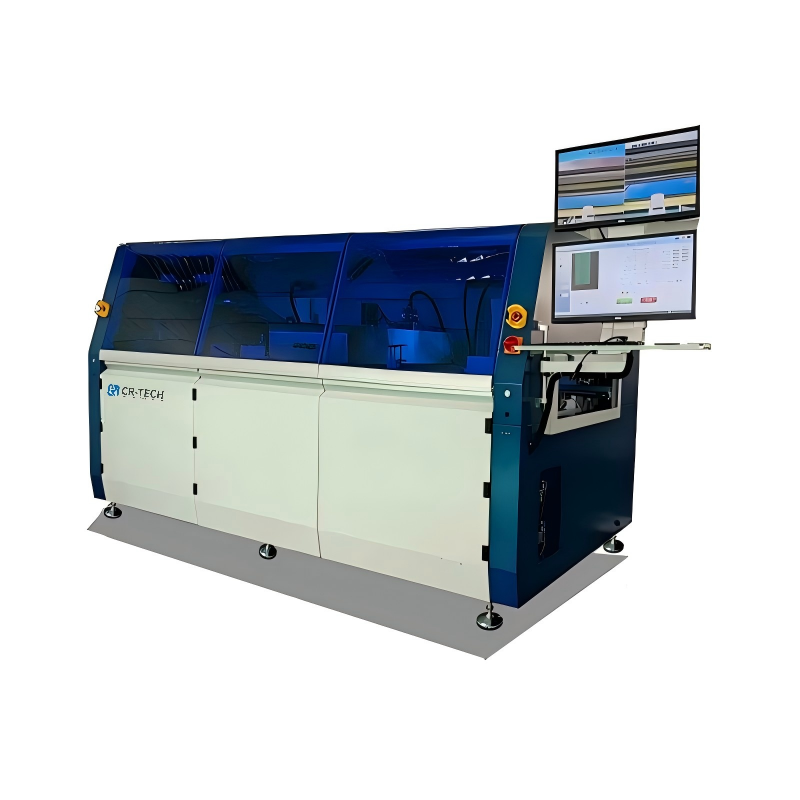

• Image:
• Specification:

• Machine name	CR-400T
  General
  dimension	L3100 x W1650 x H1650mm
  general power	20kw
  consumption power	6--10kw
  power supply	Three-phase five-wire system 380V
  net weight	1500KG
  required air source	3-5 Bars
  required air flow	8-12L/min
  required N2 pressure	3-4 Bars
  required N2 flow	>1.5 cubic meters/hour
  required N2 purity	》99.998%
  required exhausting	Above the spray: 800---1000cbm/h Above the tin furnace: 600---800cbm/h
  carrier or PCB
  carrier	Necessary
  max carrier size	L500 X W600mm
  max solder area	L500 X W450mm
  pcb edge	3mm
  controlling & conveyor
  controlling	PLC + controller
  conveyor width	300-600MM
  conveyor type	Pin chain conveyor for fluxing & preheating, roller conveyor for soldering
  conveyor thick	1----4mm
  conveyor direction	Left to right
  conveyor up clearance	100mm
  conveyor bottom clearance	30mm
  conveyor load	<10kg
  conveyor rail	Aluminum rail
  conveyor height	900+/-30mm
  Motion table（fluxing)
  motion axis	X, Y
  motion control	servo control
  position accuracy	+ / - 0.05 mm
  chassis	metal welding
  Flux management
  flux nozzle	jet valve
  nozzle durability	stainless steel
  flux tank capacity	1L
  flux tank	pressure tank
  Preheat
  preheat method	upper & bottom IR heating
  heater’s power	6kw
  temperature range	25--240c degree
  Motion table(soldering)
  motion axis	X, Y, Z
  motion control	servo control
  motion motor	Panasonic servo motor
  ball screw	Hiwin
  position accuracy	+ / - 0.05 mm
  chassis	metal welding
  solder pot
  standard pot number	1
  solder pot capacity	13kg /pot electromagnetic pump
  solder temperature range	PID
  melting time	75 Minutes rise to 260°
  max solder temperature	350 ℃
  solder heater	1.2kw
  nozzle cleaning	Automatic cleaning with settable time
  solder nozzle
  nozzle dim	customized
  material	high carbon alloy
  standard equipped nozzle	Standard configuration: 5 pieces/furnace (inner diameter 3mm, 4mm, 5mm, 6mm, 8mm)
  N2 management
  N2 heater	standard equipped
  N2 temp range	0 - 350 ℃
  N2 consumption	1-2m3/h/pot total: 4 m3/h



•
