Feature:

1: The equipment features a lead screw drive design, ensuring a long service life and sustained precision even when handling heavier products.

2: The equipment is fitted with a protective housing and optical encoders, ensuring a high level of safety.

3: The equipment features a rotating shaft design, enabling 360-degree rotational soldering.

4: The equipment features a dual-station, dual-head design, offering high efficiency—1.8 times that of a single-head model.

5: The machine utilises high-frequency eddy current heating technology, ensuring rapid heating and short soldering times.

6: The soldering mechanism features an angle-adjustable, cushioned design, allowing the angle to be adjusted to prevent damage to the circuit board.

7: The solder feed mechanism is a high-precision design, enabling precise solder delivery.

Equipment advantage:

1: Flexible and versatile soldering methods, enabling soldering at various angles and supporting both spot soldering and drag soldering. All process parameters can be configured by the user to accommodate a wide range of challenging tasks and precision soldering processes.

2: Simple programming allows for direct input of soldering point coordinates or teaching of coordinate positions; by simply operating the teaching pendant, the robotic end-effector can be guided to the soldering point.

3: German Wilo heating elements ensure rapid heating and cooling; it takes just 25 seconds to reach the set temperature of 500°C from room temperature, with a temperature deviation of ±2°C. Temperature compensation is rapid, uniform and stable; the system heats up quickly, compensates for temperature changes promptly and offers high thermal conductivity efficiency.

4: The German Wilo temperature control system ensures that the set temperature of the soldering tip remains stable. There is no need to wait for the tip to reheat due to heat being absorbed by components or the PCB, thereby preventing poor soldering quality during automated operations.

5: Multi-axis robotic arm, driven entirely by Japanese Shinano motors and utilising advanced motion control algorithms, effectively enhances the positioning accuracy and repeatability of the end effector (soldering tip). With an accuracy of ±0.02 mm, it ensures the precision of soldering positions throughout the production process.

6: Imported components, reliable and durable: Shinano Motors (Japan), Iratay synchronous belts (Italy), HIWIN guide rails (Taiwan), Mean Well power supplies (Taiwan), Omron photoelectric switches (Japan), Hongbo switches, and Omron relays (Japan).

7: With over hundreds of soldering tip configurations available, we can design a wide variety of soldering tips tailored to customers’ product requirements. High-strength alloy soldering tips offer a long service life, excellent heat conduction, prevent solder splatter, and feature multi-layer plating to resist high-temperature oxidation.

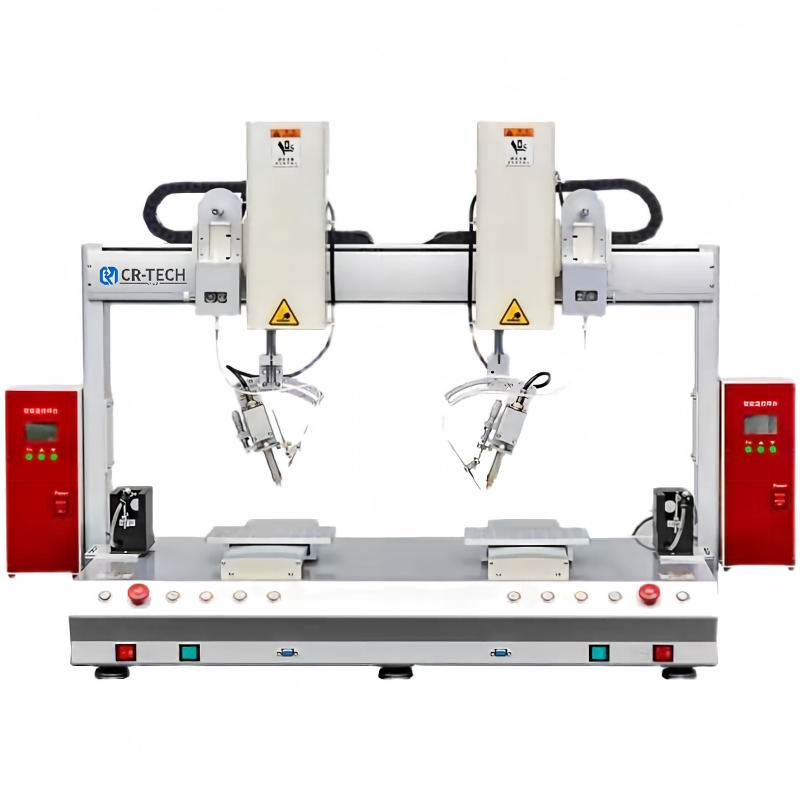

Image:

Specification:

Model	CR-HX333311RR Dual-platform eight-rotation automatic soldering machine
Temperature control system	SL
Heating core	High-frequency
Temperature adjustment range	0-500℃
Temperature error	±2℃
Soldering rangeX/Y/Z(mm)	300/300/300/300/100/100/360°/360°
The maximum load	15kg
Moving speed (mm/sec)	0—800
Decomposition capacity	0.01 mm/Axis
Repeatability accuracy	± 0.02 mm/ Axis
The program record mode	More than 100 groups
Display mode	LCD teaching box
Motor system	Leisai motor
Guide rail	HIWIN Taiwan
Transmission method	丝杆
Photoelectric switch	Omron from Japan
Motion complement function	3 axis
Input power vlotage	AC110V to 220V
External control interface	RS232
