Feature:

①With one-button operation, the entire cleaning process is completed automatically, and the rinse liquid is automatically added and discharged without manual intervention. The equipment has low energy consumption, low operating noise, no pollution, energy saving and environmental protection. It has an overall stainless steel structure and a small footprint.

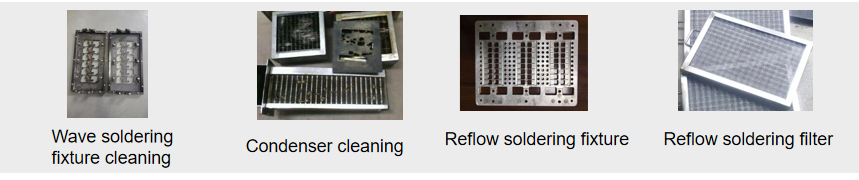

②Application scope

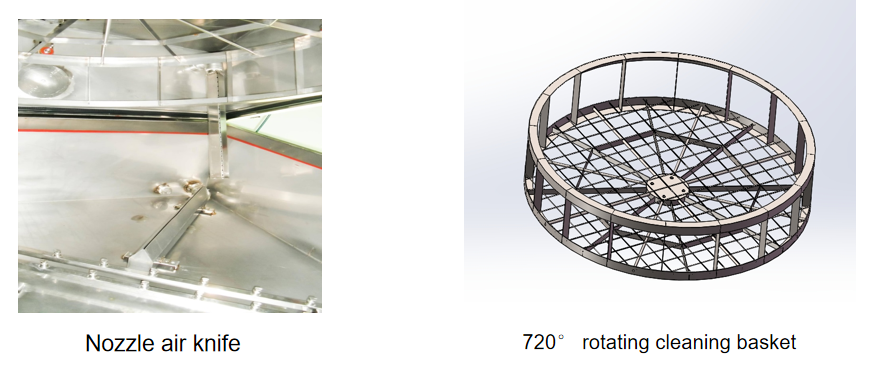

③ 720-degree rotating spray in all directions, cleaning without blind spots.

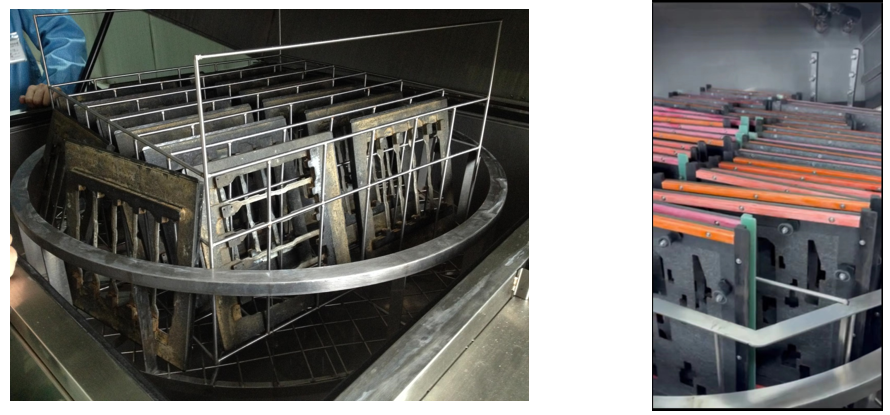

④The cleaning batch is large, which can save a lot of labor.

⑤The equipment has a cleaning and rinsing real-time circulation filtration system, using a dual-pump dual-liquid circuit design. The spray system is in a closed chamber during cleaning. It improves the utilization efficiency of liquid and reduces the cost of use.

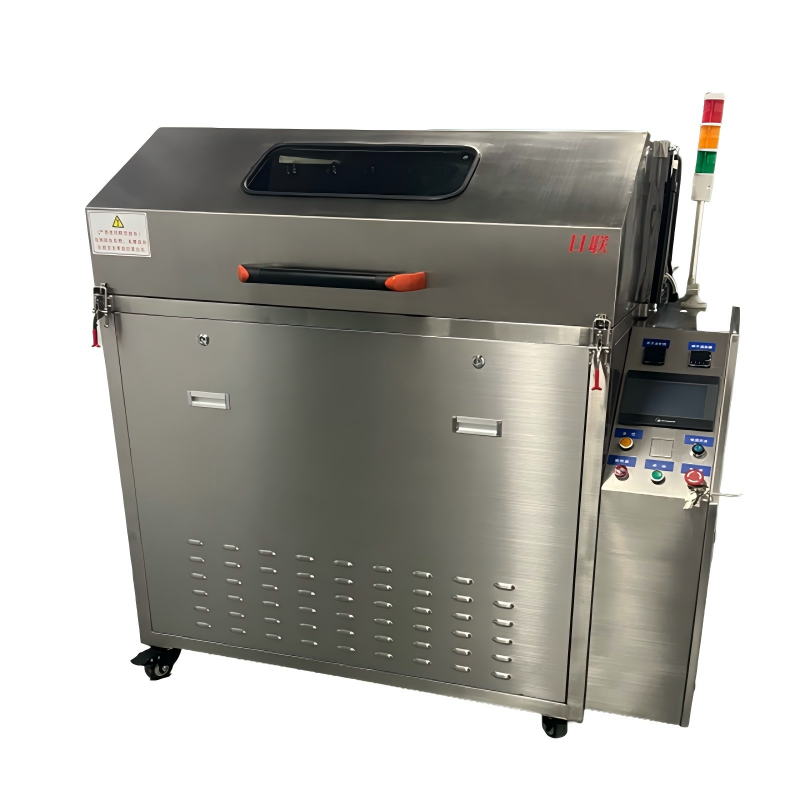

Image:

Specification:

Equipment dimensions	1880(L)×1450(W)×1500(H)mm
Work basket diameter	1000mm
Maximum height of work piece	480mm
work basket load	100kg
pressure range	0.45-0.6（Mpa)
Maximum volume of liquid tank	60L×2PCS
Optimum liquid usage	40L×2PCS
Cleaning time	4-8min(for reference only)
Rinse time	1-3min(for reference only)
Drying time	2-10min(for reference only)
Filtration system (first level)	First level filter: (filters impurities and labels)
Filtration system (secondary)	Secondary filter: (Filter small particles and tin residue)
Cleaning liquid recovery filter (three-stage)	10μm filter element (Filter small particles and rosin )
Liquid heating temperatureRoom	temperature ~ 90℃ (temperature can be set)
Electrical external air source	0.4～0.6 (Mpa)
Exhaust port size	Φ125×H25(mm)
Power supply AC380V 50HZ	AC380V 50HZ /Total power is about 27KW
Machine net weight: about	about 650Kg

Material name	brand	Origin
Clean the pump	Southern Pump	China
Filling and discharging diaphragm pump	Ingersoll Rand	USA
fan	Hua Chang	Taiwan, China
PLC	Mitsubishi	Japan
thermostat	Omron	Japan

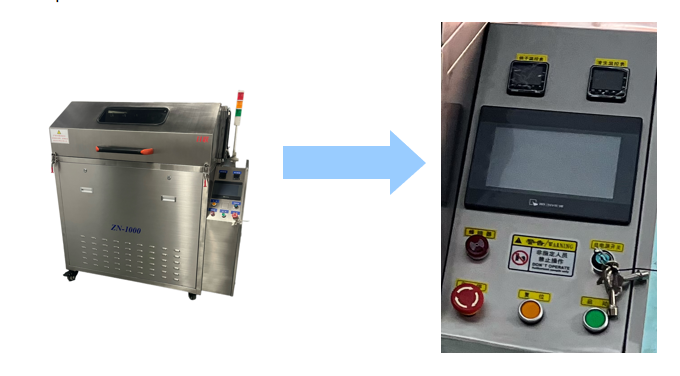

touchscreen	Wei Lun	Taiwan, China
Solenoid valve	FESTO(Festo)	Germany
Frequency converter	Taichuang	China
motor	Taichuang	China
Bearing	NKS	Taiwan, China
Proximity sensor	Omron	Japan
Thermal overload relay	Chint	China
contactor	Chint	China
Intermediate relay	Omron	Japan
Other electrical appliances	Omron	Japan
Pipe material	Acid and alkali resistant PPH pipe (4 branches)	China
