Feature:

①All stainless steel body: beautiful, wear-resistant, corrosion-resistant, in line with environmental requirements and standards;
②Fully pneumatic operation, no electricity required, no safety hazards such as fire;
③Side wall air intake and blow drying design;
④Humanized design: one-button operation and automatic filling and draining function, very easy to operate;
⑤Replaceable modular controller and quick-plug design make maintenance simple and convenient;
⑥Two-stage filtration system, low air outlet and S-shaped exhaust duct design: solvent recycling, low liquid consumption;
⑦High-density isobaric double-sided rotating cleaning nozzle has strong cleaning power and does not damage the steel mesh tension.
⑧Systematically integrate high-quality control devices from around the world to ensure excellent quality, stable performance, and long service life;

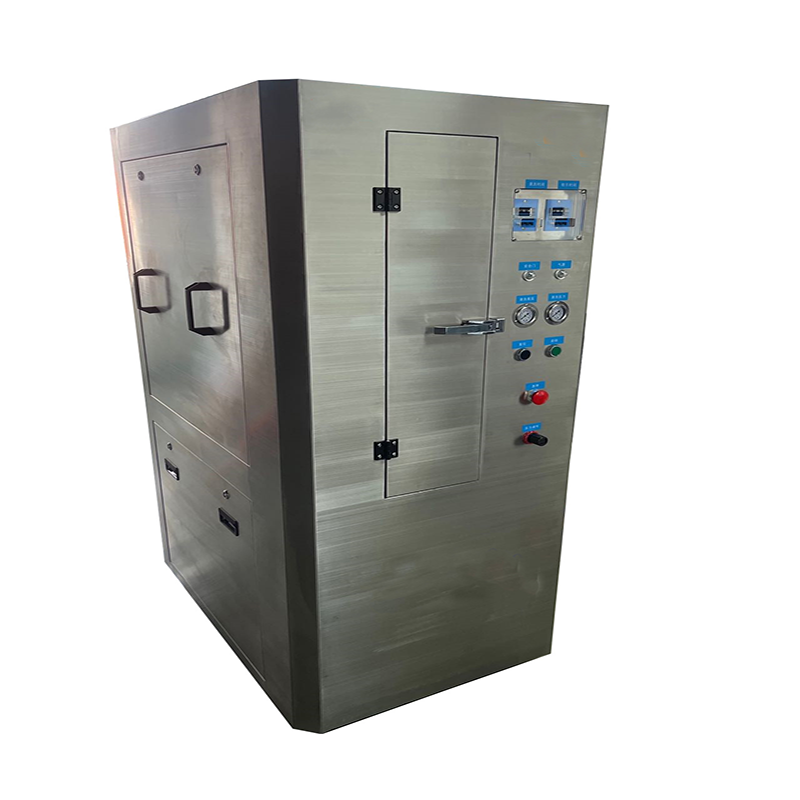

Image:

Specification:

Applicable steel mesh sizeb:	L750 × W750 × H40 (mm) [Extra large sizes need to be customized]
Overall dimensions :	L1000×W700×H1730 (mm)
Liquid tank maximum capacity	40 liters
Optimum liquid usage	30 liters
Cleaning method:	360°rotating double-sided isobaric spray roll high-pressure spray (cleaning + drying)
Cleaning time	2-5min(for reference only)
Drying time	2-5min(for reference only)
External air source	0.4～0.7 (Mpa)
Air consumption	400～600(L/Min)
Exhaust port size	Φ125×H25(mm)
Filtration system (first level)	First level filter: (filters impurities and labels)
Filtration system (secondary)	Secondary filter: (filters solder paste and rosin particles)
Filtration system (three levels)	Third level filter: 5㎛ filter element (filters solder paste and rosin particles)
Machine net weight:	about 210Kg
