Feature:

1:Dual-jumper module for simultaneous insertion of two reel types. Intelligent cutting, zero material loss, efficient and cost-effective.
2:Four-layer table, precise servo control, 360°accurate positioning, instant response.
3:One-piece ductile iron frame, 300-day natural aging & annealing, prevents thermal deformation. Superior vibration damping and tensile strength for long-term stability.
4:Modular feeder design enables quick changeover and expansion, significantly reducing downtime and ensuring continuous production.

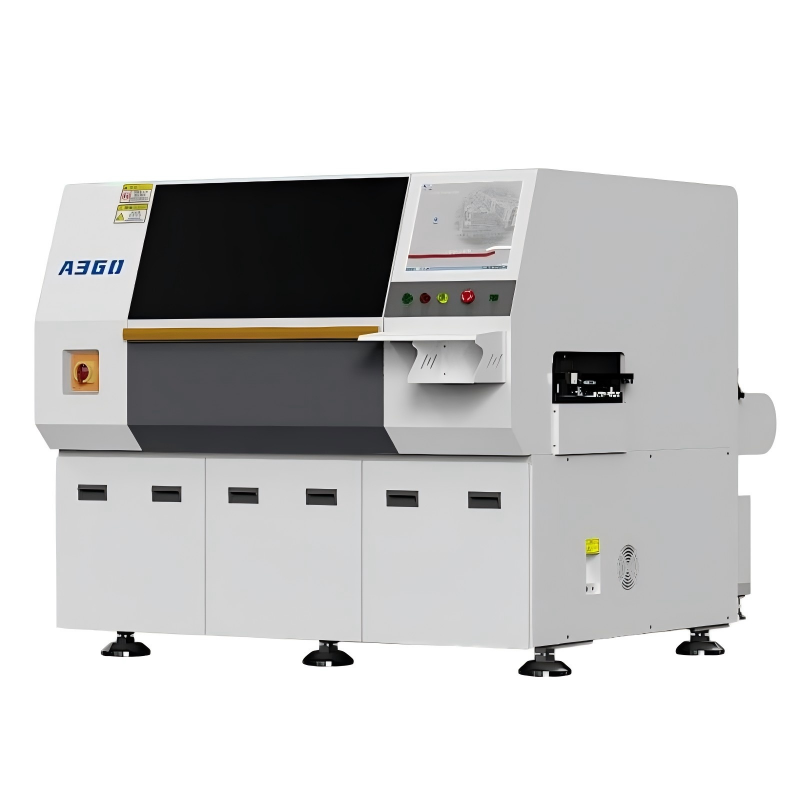

Image:

Specification:

规格参数 型号Model No AKM 插装精度0.01mm Insertion accuracy A360插装精度0.01mm,Insertion accuracy
标配跳线站1组，标配10/20支卧式飞达 Std.equipped with 1 set of jumper station and 10 or 20 sets axial feeders 供料器数量Number of Feeder
理论速度Theoretical Speed 插件0.18秒/点，过板3秒/件， Insert 0.18 sec/pcs,transfer 3 sec/pcs
PCB尺寸 PCB Size	过板尺寸最大L420*W290mm,插件范围最大 L290*W275mm,(以上左→右) Max.PCB passing size L420*W290mm,max.insertion range L290*W275mm,above L→R			过板尺寸最大L460*W290mm,插件范围最大L290*W250mm, (以上左 → 右) Max.PCB passing size L460*W290mm,Max.insertion range L290*W250mm,above L→R
标配：四方向0°/90/180°/270°;元件跨距5～24mm Std.:4 direction 0°/90°/180°/270°;component lead pitch 5~24mm				标配：360°,任意角度插件；元件跨距5~24mm Std.:360°,insert at any angle;component lead pitch 5~ 24mm
元件种类&规格 Component Type&Size		适用于52mm卧式编带封装料，引线直径0.4～0.8mm,元件最大长度16mm,最大直径4mm Applicable to 52mm axial tape packaging component with lead diameter 0.4~0.8mm,max.component length 16mm,max.diameter 4mm
元件剪脚&弯脚 剪脚长度1.2~2.2mm(可调);弯角角度5~45°(可调) Lead Trimming &Bending Component lead trimming length1.2~2.2mm;Component lead bending angel 5~45°
控制系统 Windows操作系统中英文界面、视窗平台、液晶显示， USB接口输入(EXCEL文档格式) Control Sys. Windows OS with Chn.&Eng.interfaces,windowed platform,LCD,USB input,excel format
功能配置 Functional Configuration			Al智能图像扫描系统、Al智能识别编程系统、AI智能Mark识别补偿系统、Al智能防呆系统、AI智能Badmark识别系统、Al 智能防错料系统、AI实时数据跟踪系统、MES管理系统、远程技术支持 AI Vision Sys.Al Intell.AI Programming Sys.AI Mark Compensation Sys、Al Error-Proofing Sys. (Poka-Yoke).AI Badmark Recognition Sys.AI Component Verify Sys.AI Real-Time Monitoring Sys.MES Integration Sys.Remote Support Sys.
