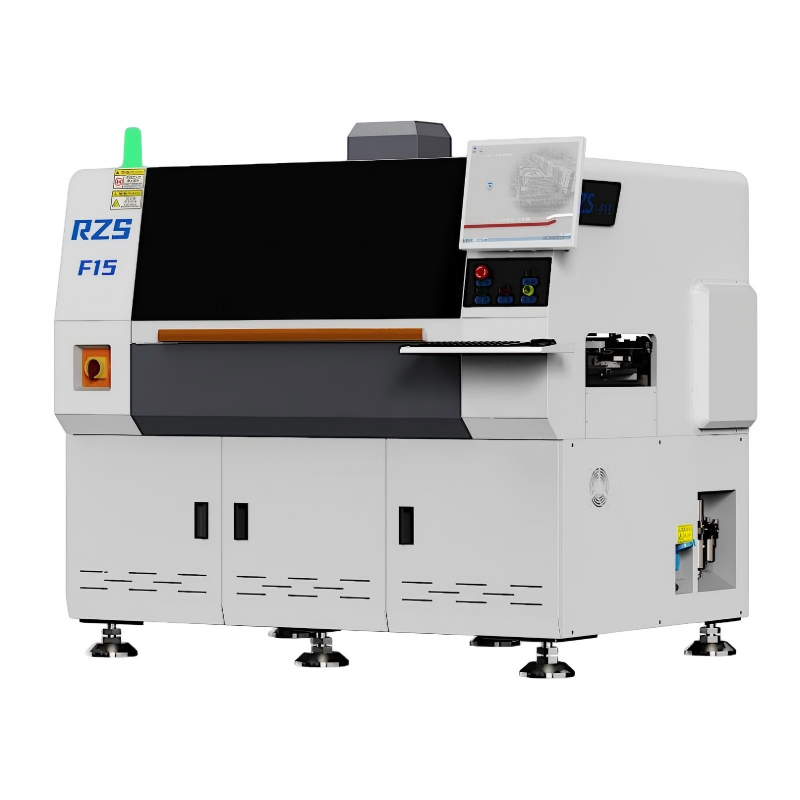

Featrue:

1:23kg ultra-lightweight design, high-speed precision positioning, and faster production tempo.
2:High-efficiency power system and intelligent dynamic control for high-speed, stable operation. Full-range dynamic adjustment for lead cutting.
3:One-piece ductile iron frame, 300-day natural aging & annealing, prevents thermal deformation. Superior vibration damping and tensile strength for long-term stability.
4:Supports 20+ feeding units, covers 90%+ industry components. High adaptability and worry-free configuration.

Specification:

	规格参数
型号Model No	RZS插装精度0.01mm,Insertion accuracy
供料器数量Feeder Number	选配12支/15支/20支， Option 12/15/20 sets
理论速度Theoretical Speed	插件0.16秒/点，过板3秒/件， Insert 0.16 sec/point,transfer 3 sec/pcs
PCB尺寸	过板尺寸最大L500*W290mm,插件范围最大L415*W275mm,(以上左→右)
PCB Size	Max.PCB passing size L500*W290mm,max.insertion range L415*W275mm,above L→R
插入方向&跨距	标准：-90°to +90°,360°可选，增量为1°;元件跨距2.5/3.5/5.0/7.5/10.0mm(可选配)
Insertion Angle&lead Span	Std.-90°to +90°,option 360°increment in 1°;spacing option 2.5/3.5/5.0/7.5/10.0mm
元件种类&规格	适用于立式编带封装料，编带孔距12.7/15mm;元件最大高度23mm,最大直径13mm(可定制)
Component Type&Size	Applicable to radial tape packaging component,paper hole distance 12.7/15mm,max.height 23mm.max.diameter 13 mm,customizable
元件剪脚&弯脚	剪脚长度1.2~2.2mm(可调);弯角角度5~45°(可调)
Lead trimming &bending	Component lead trimming length1.2~2.2;Component lead bending angel 5~45°
控制系统	Windows操作系统中英文界面、视窗平台、液晶显示
Control Sys.	Windows OS with Chinese/English Interface,Windows Platform,LCD Display
功能配置	AI智能图像扫描系统、Al智能编程系统、AI智能Mark识别补偿系统、AI智能防呆系统、AI智能Badmark识别系统、Al智能防 错料系统、AI智能识别补件系统、AI实时数据跟踪系统、MES管理系统、远程技术支持
Functional Configuration	AI Vision Sys、Al Programming Sys、AI Mark Compensation Sys、Al Error-Proofing Sys. (Poka-Yoke)、Al Badmark Recognition Sys、MES Integration SysAI Component Verify Sys、AI Auto-Repair Sys、AI Real-Time Monitoring Sys Remote Support Sys
