SMT Line Automatic Shuttle Gate Track Conveyor Machine
In a long SMT line,the shutle gate provides a safe gate for personsor cars to go across.also good for length changes.
PRODUCT DETAIL
Feature:
a)Smooth and aocurate
b)Sensitiver Reflection Sensor gives a high security
c)Adjustable stroke
d)PLC Control system

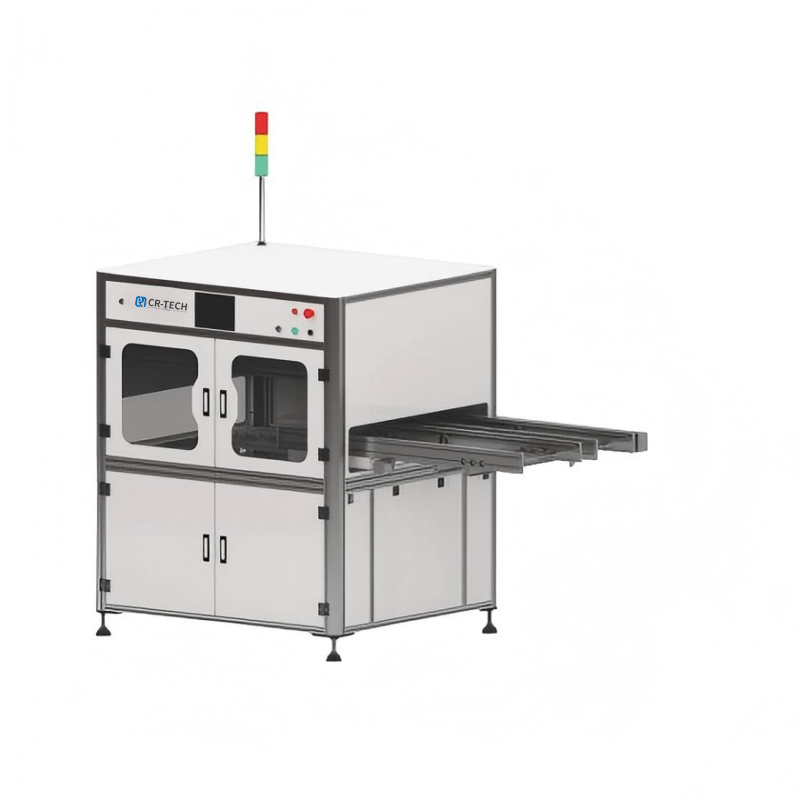

Image:
Specification:
| Model | 型号 | CR-1200-SG1 | CR-1200-SG2 |
| Overall Dimension | 机台尺寸 | (L)710*(W)700*(H)1510mm | (L)1200*(W)1050*(H)1510mm |
| Track width | 传送宽度 | Min50-Max500 | Min50-Max500 |
| PCB Size(L*W) | PCB尺寸(L*W) | Min80*50-Max400*500 |
Monorail: Min80*50-Max520*500
|
| Conveyor Height | 传输高度 | 920±30mm | 920±30mm |
| PCB Conveyor Dirction | 传输方向 | From left to right (direction specified) | 左至右(方向指定)From left to right (direction specified) |
| Track Hsight(length of the extension) | 伸缩长度 | 490mm extended, 710mm for the main body | The main body is 1200mm and extends 800mm |
| Cycle | 循环周期 | 15s | 15s |
| Power Supply | 电源 | 220V 50Hz | 220V 50Hz |
| Power Consumption | 功率 | 0.2KW | 0.2KW |
| Weight | 重量 | 255KG | 317KG |
| Guide mode | 导轨模式 | single track |
