SMT Line Automatic Shuttle Gate Track Conveyor Machine
In a long SMT line,the shuttle gate provides asafe gate for personsor cars to go across.also good for length changes
PRODUCT DETAIL
Feature:
a)Smooth and accurate shuttle
b)Sensitive Reflection Sensor gives a high security
c)Adjustable stroke
d)PLC Control system

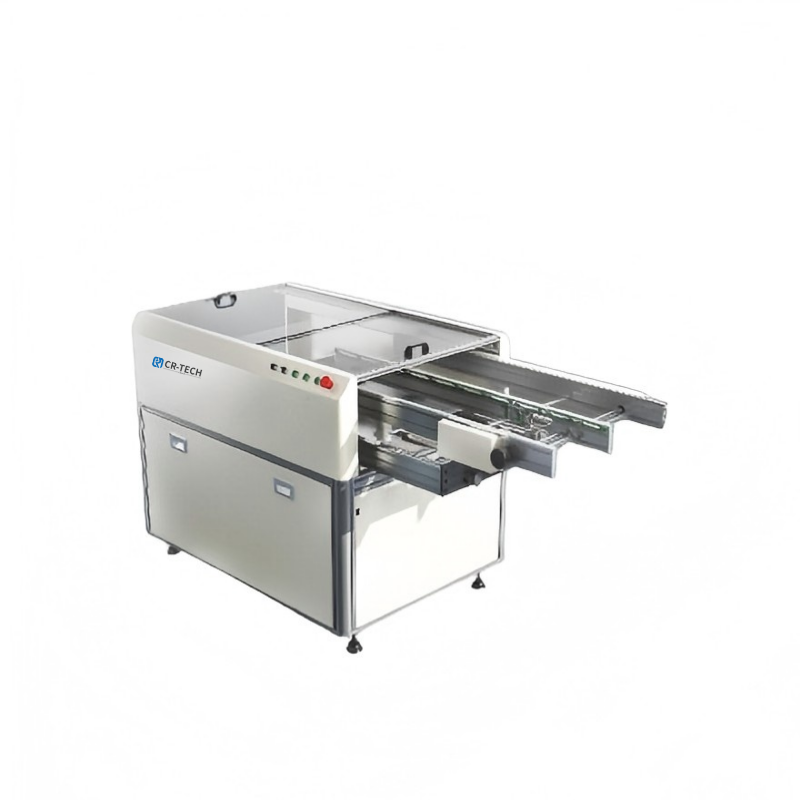

Image:
Specification:
| Model | 型号 | CR-1200-S | CR-1200SG |
| Overall Dimension | 机台尺寸 | (L)600*(W)830*(H)1000mm | (L)600*(W)1050*(H)1010mm |
| Track width | 传送宽度 | Min50-Max460mm | Min50-Max500mm |
| PCB Size(L*W) | PCB尺寸(L*W) | Min80*50-Max460*500mm |
|
| Conveyor Height | 传送高度 | 920±30mm | 920±30mm |
| PCB Conveyor Direction | 传输方向 | From left to right (flow direction specified) | From left to right (flow direction specified) |
| Track Height(length of the extension) | 伸缩长度 |
500mm(adjustable
|
500mm(adjustable
|
| Cycle | 循环周期 | 20S | 20s |
| Power supply | 电源 | 220V50HZ | 220V 50Hz |
| Power Consumption | 功率 | 0.2KW | 0.2KW |
| Weight | 机台重量 | about248KG | 280KG |
| Guide mode | 导轨模式 | monorail | double track |
| Fixed length | 固定段长 | L600mm | L600mm |
| Extension length | 伸出段长 | L600mm | L600mm |
