Feature:

1.A fully functional offline device with a small footprint

2.The circuit board and the spray system move synchronously with the soldering platform.

3.The full PC control function allows all parameters to be directly set and saved on the computer.

4.welding moving speed Adjustable within the range of 0 to 400 mm

5.Standard configuration with 5 soldering nozzles

6.It adopts an all-steel structure with a base plate at the bottom to enhance stability and minimize vibration

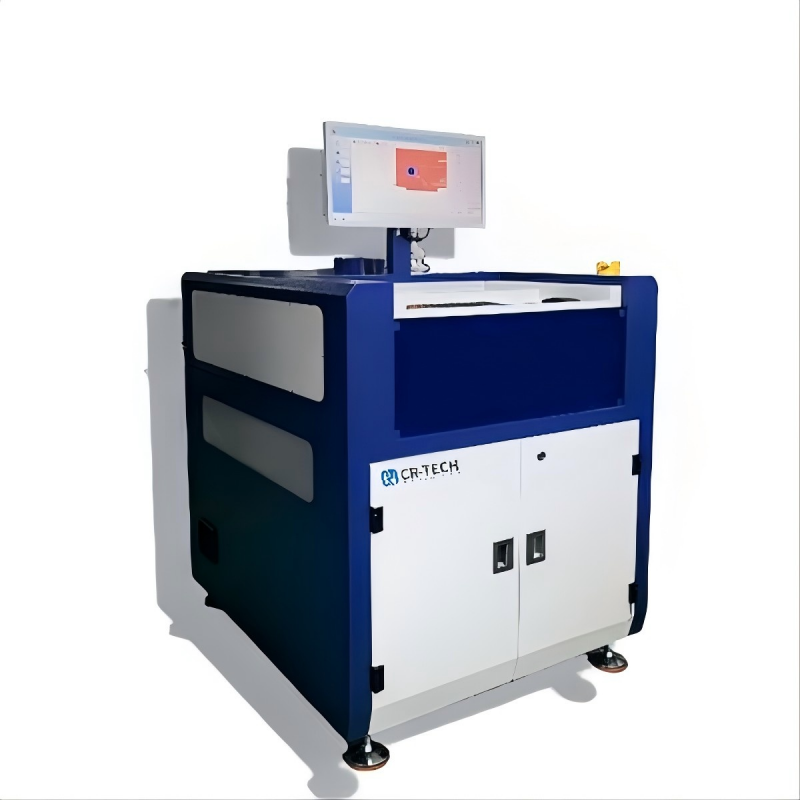

Image:

Specification:

Model	CR-300S
Overall Dimensions	950L*1060W*1670H (mm) (Height includes monitor)
Machine frame	Steel structure+baking paint
Machine appearance	Closed equipment
Board-taking and-placing method	Manual taking and placing
Working height	900±20mm
Weight	Approx.280KG
Power supply	1φ 220V 50/60HZ
Total power	3KW
Welding real-time monitoring	standard configuration
Programming methods	Picture programming, Gerber document,visual teaching programming, etc.
Control system
Control mode	PC+ motion control card
PCB Process parameter	Setting, save , open in the PC screen
Other	PCB counting, message, alarm can be read in the PC
Option
Electromagnetic pump tin furnace
Flux injection valve
Preheating module
Visual inspection of solder joints
Scan the barcode
Camera photography programming
500°C high-temperature tin furnace
Peak height detection
2 cubic nitrogen generator
Common Wear & Tear Parts
Welding nozzle, nozzle cleaning fluid, high-temperature bearing
