Selective Soldering Machine

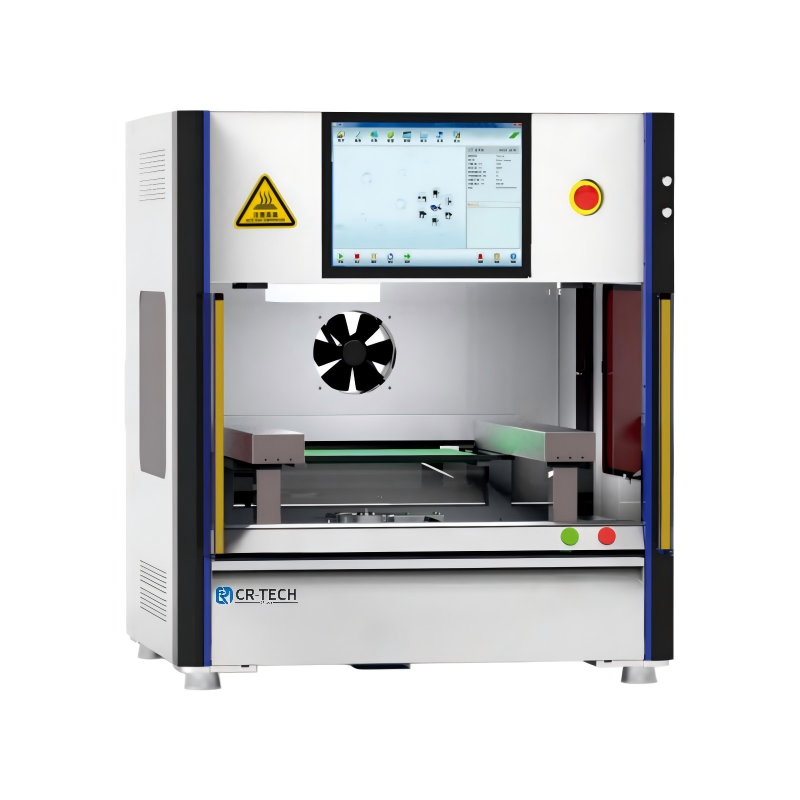

Desktop Selective Soldering Machine CR-330A for Precision PCB Welding
CR-330A desktop selective soldering machine integrates spraying, preheating and soldering. It features ±1℃ precise temp control, 5-min fast programming, automatic nozzle correction and process data traceability. Compact design, low power consumption, widely used in automotive, medical and industrial electronics manufacturing.
PRODUCT DETAIL
Feature:
1.3-Station: Spraying + Preheating + Soldering
2.Single Solder Pot
3.Energy-efficient, small footprint
4.Advanced temperature control algorithm, solder pot temperature ±1℃
5.Traceable soldering process data
6.Customizable maintenance/reminder cycles
7.5-minute rapid programming, camera scanning, simple and easy to use
8.Zero-burden program copying, compatible with multiple devices of the same model, program can be copied and imported
9.Zero hassle solder nozzle replacement, automatic Z-axis height correction
Image:
Specification:
|
Model
|
CR-300A
|
||
|
Equipment parameters
|
Equipment travel distance
|
300*300mm
|
|
|
Dimensions
|
800*840*915mm
|
||
|
Power supply
|
220VAC/3KW
|
||
|
Operating power
|
1KW
|
||
|
Weight
|
150kg
|
||
|
Workstation parameters
|
Spray control method
|
Spot spray/line spray
|
|
|
Preheating method
|
Lower infrared
|
||
|
Wave drive method
|
Mechanical pump
|
||
|
Pot capacity
|
5kg
|
||
|
Maximum pot temperature
|
350℃
|
||
|
Melting time
|
mechanical pump≤30mins
|
||
|
Fluoride capacity
|
1L
|
||
|
PCB Specifications
|
Maximum PCB size (including fixture)
|
300*300mm
|
|
|
Height of upper PCBA components
|
Max 280mm
|
||
|
Height of lower PCBA components
|
Max 80mm
|
||
|
PCB process edge
|
≥5mm
|
||
|
Software Configuration
|
Programming method
|
Panoramic images / Real-time images / Manual programming
|
|
|
Optional features
|
Floor-standing workbench/safety light curtain
|
||
