Feature:
●At present, many domestic companies are using fully automatic PCB board cleaning machines.
●The effect and return rate are obvious, and the fully automatic PCB panel cleaning machine will also
●More and more common.
●In the future, SMT packages tend to be miniaturized, surface cleaning before PCB patches
●And removing static electricity has become part of the process.
①Adopting touch screen control interface, the operation is simple and easy to understand.
②The width of the board feed track can be adjusted simply and conveniently.
③The track feeding direction can be switched at will, left→right or right→left.
④The PCB board inlet and outlet are equipped with anti-static devices to reduce the defective patch and electrostatic damage caused by static electricity during the patch process.
⑤The board inlet is equipped with a brush, which has a stronger ability to remove hair and debris.
⑥The machine is equipped with a vacuum cleaner outside to remove dust, hair, debris and other foreign matter in time.
⑦Prevent foreign matter from sticking to the brush.
⑧High viscosity anti-static knife-free dust-adhesive roller, one sheet can be directly torn off without cutting, and the dust is more firmly and cleanly adhered, and it is more convenient to replace.

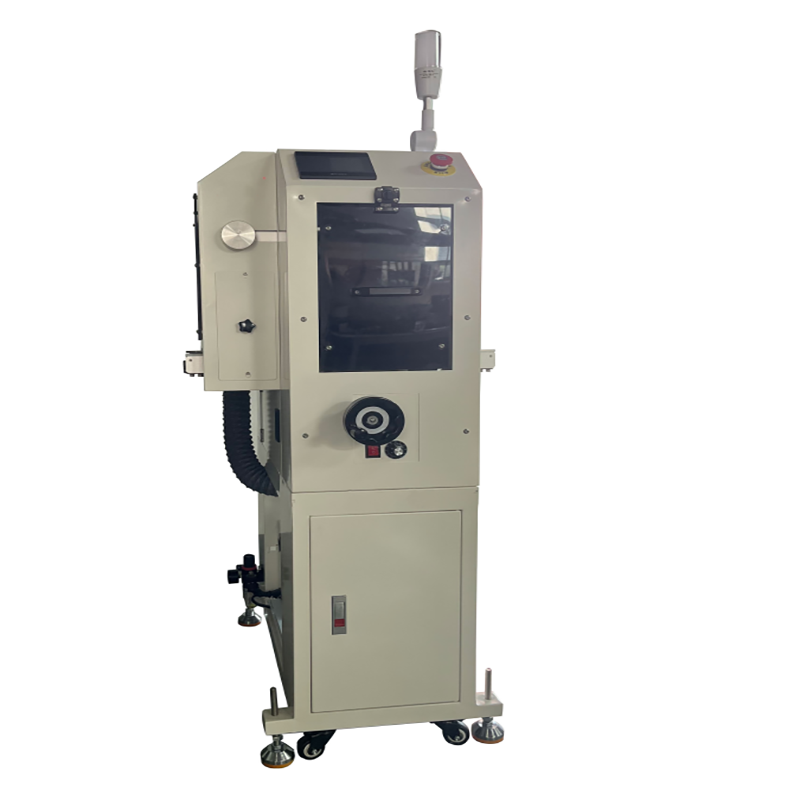

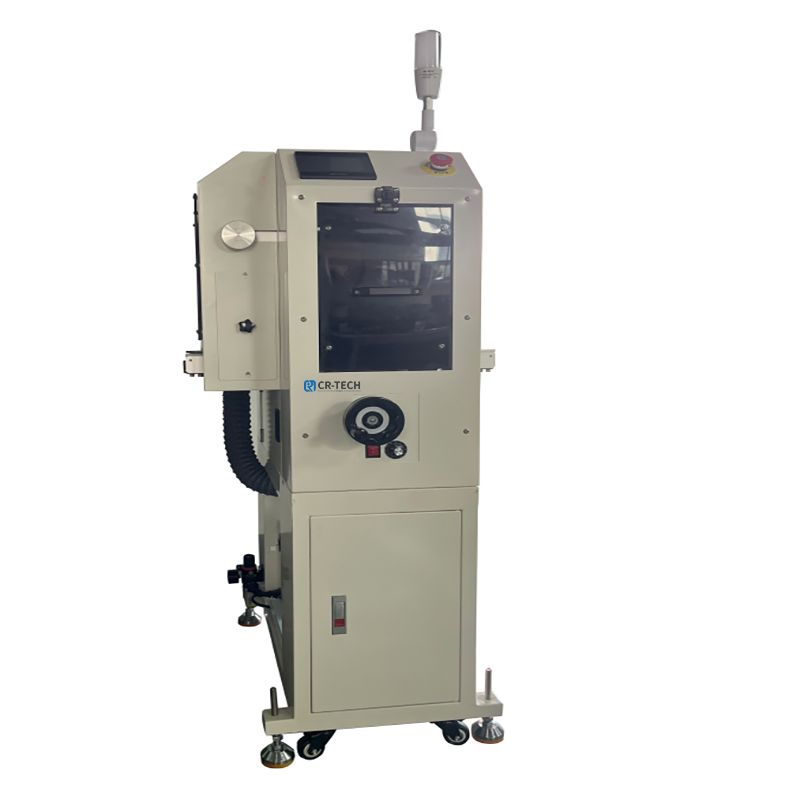

Image:
Specification:
|
Project |
Specifications/Parameters |
Remarks |
|
PCB Size |
50~300 (W)mm |
Other models for large substrates |
|
PCB Thickness |
0.5~2mm |
|
|
Transmission Height |
900±25 mm |
|
|
Cleaning brush |
1 piece |
|
|
Vacuum cleaner |
1 set |
Built-in |
|
Dust-sticking roller |
Two in front and back |
|
|
Dust-sticking paper |
One roll |
|
|
Track direction |
Left→right or right→left |
Optional |
|
Track fixed edge |
Front or rear fixed |
Optional |
|
Track width adjustment |
Manual |
Automatic track width adjustment optional |
|
Static elimination device |
Built-in |
Special static elimination device optional |
|
Air source |
0.4-0.5MPa |
|
|
Power supply |
AC220V,50HZ 500W |
Special voltage needs to be specified |
|
Dimensions (mm) |
W890 × L600 × H1400 |
|
|
Weight |
140KG |
|
|
Serial number |
Part name |
Part brand |
Part origin |
|
1 |
PLC |
Mitsubishi |
Japan |
|
2 |
Touch screen |
Veilon |
Taiwan, China |
|
3 |
Sensor |
Omron |
Japan |
|
4 |
Stepper motor |
Yankong |
China |
|
5 |
Cylinder |
AirTAC |
Taiwan, China |
|
6 |
Vacuum cleaner |
Customization |
China |
