Product Description:

①Extra large cleaning capacity: 610mm (L) * 560mm (W) * 100mm (H) double-layer design to meet larger product sizes and higher cleaning capacity;

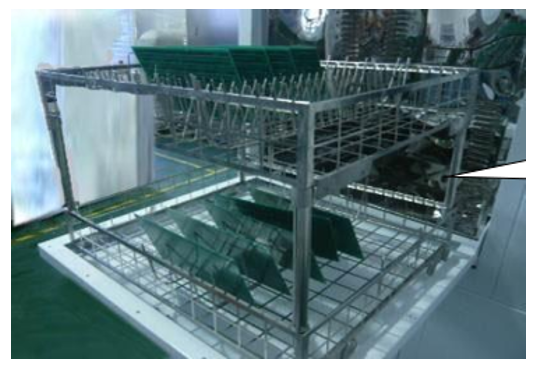

②The method of placing PCBA is as shown in the figure;

③Full process visualization: The spray chamber is equipped with a visualization window and an LED lighting to make the cleaning process clear at a glance.

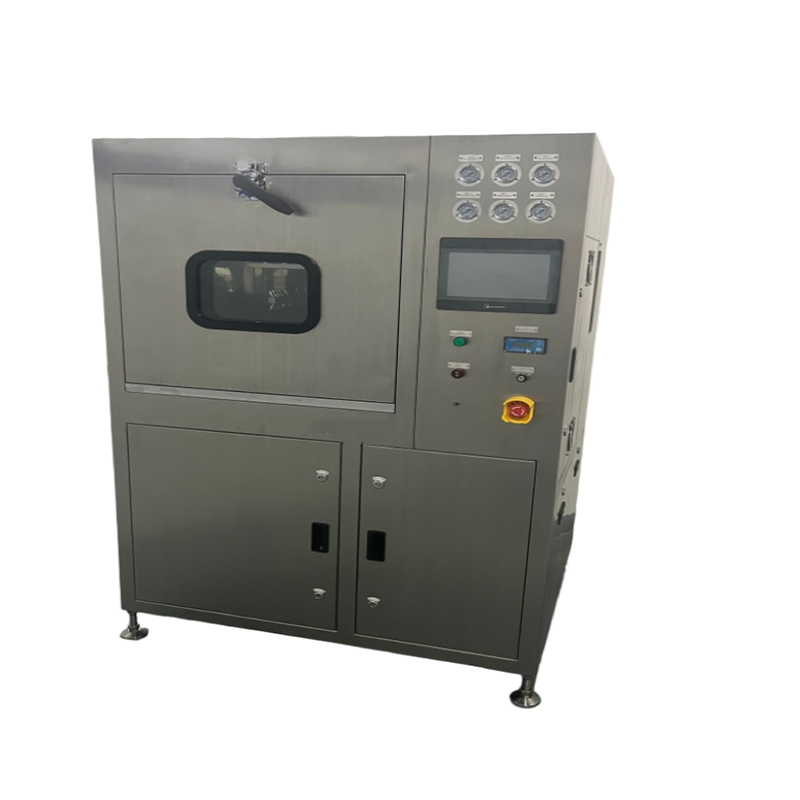

Machine feature:

1. Comprehensive cleaning system: Thoroughly and effectively clean the organic and inorganic substances remaining on the product surface;
2. Fully automatic cleaning mode: all cleaning, rinsing and drying processes are completed in one cleaning room, with small size and compact structure;
3. The most scientific nozzle design: using left and right incremental distribution to improve cleaning efficiency; up and down staggered distribution to completely solve cleaning blind spots;
4. Adjustable nozzle pressure design: Reduces the risk of collision and splashing caused by small-sized products under high-pressure spray conditions during the cleaning process;
5. Standard diluent tank heating system: greatly improves cleaning efficiency and shortens cleaning time;
7. Large-size touch screen operation interface: Using a stable and reliable color touch screen, different cleaning process parameters can be set according to different products, making the operation easier;
8. High standard of cleanliness: The ion pollution degree fully complies with the Class III standard of IPC-610D (less than 1.56μg/cm², subject to accuracy) and the Class I standard of the US military standard MIL28809;
9. Convenient cleaning agent proportioning method: it can be added manually, or DI water and chemical liquid can be automatically proportioned according to the set ratio (5%-25%);

Image:

Specificaiton:

Equipment parameters:
Cleaning chamber dimensions	L690xW620xH715 (mm)	sprinkler system	Up and down 360 degree rotating spray cleaning
Wash basket size	L610xW560xH100(mm) double layer design	Cleaning spray pressure range	0.3~0.6(Mpa)
Concentrate tank capacity	30L	Spray tank capacity	17L-23L
Diluent tank capacity	70L	Wash basket load	100KG
Rough washing time	3~8 minutes (reference)	Rinse time	1~2 minutes/time, 1-10 times (set as required)
Drying time	20~30 minutes (reference)	Liquid heating temperature	~75P
Inner cavity temperature compensation power	6KW	Hot air drying temperature room temperature	~99P
Solvent tank heater power	9KW	Drying heater power	6KW
Horizontal spray pump power	5.5KW	Resistivity meter monitoring range	0~ 18MQ·cm
Air source	0.4-0.7Mpa	water inlet and outlet	1 inch quick release interface
power supply	AC380V 3P,50/60HZ 27KW	Machine weight	400KG
Machine size	L1200xW1100xH 1780±30(mm)	Exhaust port size	Φ100*30H(mm)
3-stage filtration system	Level 1 filter (filters impurities and labels) Level 2 filter (filters small particles and solder paste) Level 3 filter 5um (filters small particles and rosin)
Quantity of one cleaning	Calculated based on PCBA board size L200×W100×H20 (mm), each batch can wash 100-160pcs
