●X, Y and Z three-axis movement accurately realizes the selective spraying process of various circuit boards avoiding connectors and other non-coated areas.
●It can realize multi-trajectory spraying such as point coating, linear spraying, curve spraying, etc., and complete the high-density complex circuit board spraying process.
●It can effectively and evenly coat the edge of the device, which can eliminate the spray shadow effect.
●It has high-speed, high-reliability and high-stability transmission and control system.
●It can realize the high-density complex circuit board spraying and dispensing process.
●The device has an intelligent electric width and narrowing function (the width of the input board can be electrically adjusted in place).
●Whole line docking: The equipment is equipped with SMT industry standard SMEMA interface, which can be used for signal docking with other devices.
1：Equipment parameters
|
Rack size L*W*H |
L1060mm*W1200mm*H1700mm |
|
Equipment platform |
T2.0Millimeter steel plate grinding flat chrome plating |
|
Control method |
Industrial controller + motion control card |
|
Mode of operation |
.Computerized control |
|
Programming method |
Manual teaching |
|
The number of running program storage |
More than 1000 |
|
PCB transmission height: |
9Ten±20 mm |
|
Transportation speed |
0.5-3.5m/min adjustable |
|
Mode of transportation |
Chain conveying (35B 5mm plus long pin stainless steel chain) |
|
Transmission motor |
2 stepper motors |
|
.PCB width range |
50-450mm adjustable |
|
Adjustment method |
Intelligent electric adjustment |
|
Adjust the drive mode |
Stepper motor + double precision screw drive |
|
X.Y axis drive mode |
Servo motor + precision screw module drive |
|
The maximum operating speed of X.Y axis |
800 mm/s |
|
X.Y axis repetition accuracy |
±0.02 mm |
|
The maximum operating speed of the Z axis |
300 mm/s |
|
Z-axis drive mode |
Servo motor + precision screw module drive |
|
Z-axis repeat accuracy |
±0.02 mm |
|
Type of rubber valve |

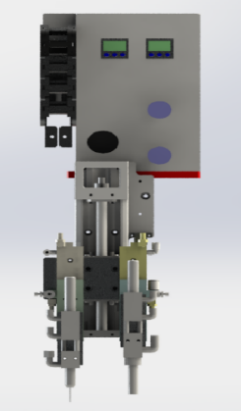

Join in marriage1Put the precision atomization valve H-905And 1 impact needle dispensing valve H-D01. |
|
Size of PCB board |
MAX:Large size450 mm*.W.450 mm |
|
PCB board component height |
MAX: ±110 mm |
|
Atomization spraying width |
Three-10 mm |
|
Volume of the material barrel |
A 10L stainless steel inner barrel without stirring function pressure barrel + a 2L stainless steel pressure barrel for cleaning |
|
Cleaning function |
The equipment has its own cleaning function. |
|
Lighting part |
The equipment comes with its own lighting source. |
|
Testing part |
The equipment comes with fluorescent agent detection light source. |
|
Equipment weight |
Approx. 650 KG |
|
Equipment power supply |
AC220V. 50 HZ |
|
Equipment gas source |
4-6kgf/cm2 |
|
The total power of the equipment |
1.8 KW |
2：Configuration list
|
Serial number |
Name |
Brand name |
Unit |
Quantity |
Use |
|
1 |
Servo motor (motor) |
Fuji./Fuji |
You |
Three |
Used forX/Y/Z axis movement |
|
2 |
Servo drive |
Fuji./Fuji |
You |
Three |
Drive related shaft motorsSport |
|
Three |
Stepper motor |
Ruite/Spark |
You |
Three |
Transport shaft and amplitude modulation shaft motor |
|
4 |
Switching power supply |
Jin Shengyang |
You |
2 |
Weak power supply of the equipment |
|
.5 |
U-shaped sensor |
Omron./Omron |
Twig |
4 |
Location positioning |
|
6 |
Photoelectric sensor |
Fort League/Sike/Omron |
Twig |
Three |
PCBA induction |
|
7 |
Industrial computer |
Advance technology./Research China |
You |
1 |
Motion control computer |
|
8 |
Motion control card |
HAIPAI. |
Lump |
2 |
Motion control system,Independent development |
|
9 |
Liquid crystal display |
Associate with |
You |
1 |
Human-computer interface display |
|
Ten |
.Gas source processor |
AirTAC/Yadeke |
Self |
1 |
Equipment gas source control |
|
11 |
Slide cylinder |
Yadeke |
Self |
2 |
Pneumatic component control of glue valve |
|
12 |
Pressure (regulating valve) |
NNT. |
Self |
1 |
Used for air pressure regulation |
|
.13 |
Pressure digital display |
NNT. |
Self |
1 |
Air pressure display |
|
14 |
Solenoid valve |
NNT. |
Self |
4 |
Pneumatic component control |
|
15 |
Pressure switch |
AirTAC/Yadeke |
Self |
1 |
Pressure switch |
|
.16 |
Double-bar cylinder |
XINCHEN. |
Self |
2 |
PCBA.Board positioning |
|
17 |
Intercept valve |
XINGCHEN. |
Self |
8 |
Air pressure size control |
|
18 |
Tracheal joint |
XINGCHEN. |
Self |
.Several |
Gas route transfer |
|
19 |
Pressure bucket |
HAIPAI CUSTOMIZATION |
Case |
1 |
Material bucket |
|
20 |
Scred module |
HIWIN. |
Case |
Three |
X/Y/Z axis |
