China supplier odd insert machine Y40
PRODUCT DETAIL
Feature:
1:Engineered to rapidly adapt across materialsand levels, delivering customized, reliableautomationat speed.
2:Millisecond-level electrical detection synchronized insertion, 100% online inspection. Ensures high throughput and reliability.
3:Dedicated pin-processing for all components. Precision bending ensures consistency, secure fastening, and physical missed-insertion prevention.

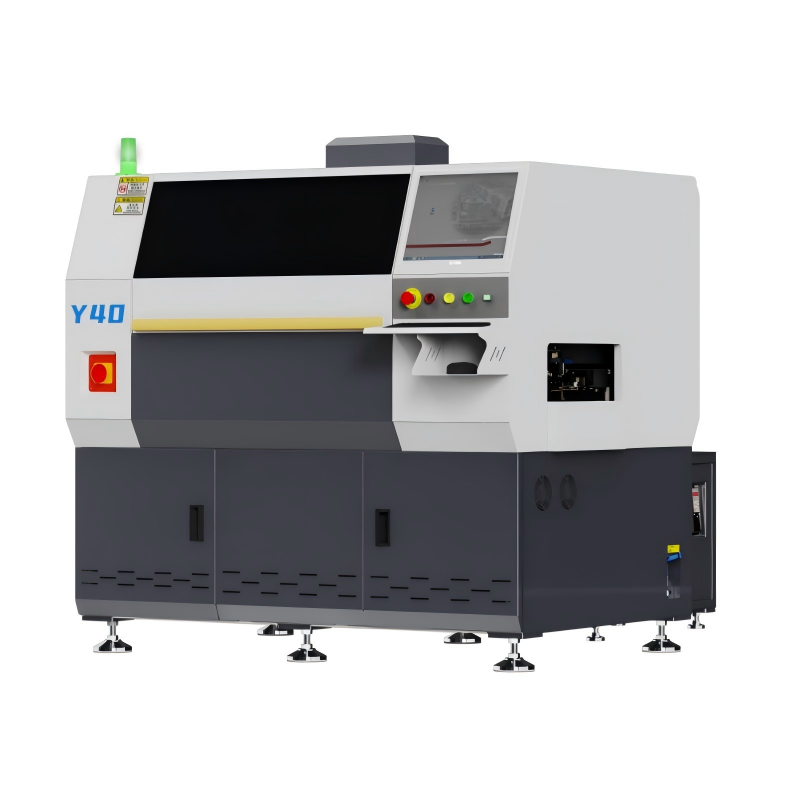

Image:
Specification:
| 规格参数 | |
| 型号Model No | Y10/20/30/40/50 插装精度0.01mm,Insertion accuracy |
| 供料器数量Number of Feeder | 选配7支/10支，Optional 7/10 sets |
| 理论速度Theoretical Speed | 插件0.4-0.7秒/点，过板3秒/件，Insert 0.4-0.7 sec/pcs,transfer 3 sec/pcs |
| PCB尺寸 | 过板尺寸最大L460*W290mm,插件范围最大L420*W280mm,(以上左→右) |
| PCB Size | Max.passing size:L460*W290mm L→R Max.insert range:L420*W280mm above L→R |
| 插入方向&跨距 | 标配：360°,任意角度插件 |
| Insertion Angle&Lead Span | Std.:360°,insert at any angle |
| 元件种类&规格 | 客供料来料定制 |
| Component Type&Size | Customization with customer-provided components |
| PCB厚度&传送高度 | 厚度0.79～2.36mm,标准：1.6mm,高度900±20mm |
| PCB Thickness&Conveying Height | Thickness 0.79～2.36mm,std.1.6mm,height 900±20mm |
| 控制系统 | Windows操作系统中英文界面、视窗平台、液晶显示 |
| Control Sys. | Windows OS with Chinese/English Interface,Windows Platform,LCD Display |
| 功能配置 |
Al智能图像扫描系统、AI智能识别编程系统、AI智能Mark识别补偿系统、AI智能防呆系统、AI智能Badmark识别系统、 Al智能防错料系统、Al实时数据跟踪系统、MES管理系统、远程技术支持 |
| Functional Configuration |
AI Vision Sys.Al Programming Sys.AI Mark Compensation Sys.Al Error-Proofing Sys. (Poka-Yoke).AI Badmark Recognition Sys.AI Component Verify Sys.AI Real-Time Monitoring Sys.MES Integration Sys.Remote Support Sys |
