Feature:

1:23kg ultra-lightweight design, high-speed precision positioning, and faster production tempo.
2:50-unit compact chain, optimized feeding efficiency, and minimized wear-prone parts.
3:23kg ultra-lightweight design, high-speed precision positioning, and faster production tempo.
4:This system employs a hybrid architecture marrying a rigid cam with a flexible servo, ensuring high-speed, stable, and jitter-free motion with instantaneous response.

Specification:

	规格参数

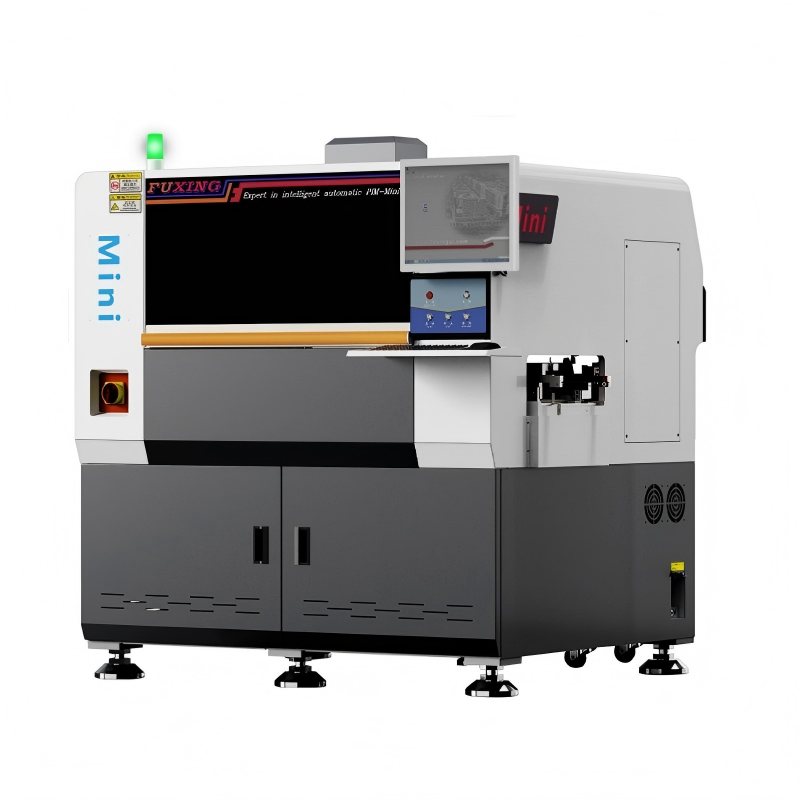

型号Model No	Mini 插装精度0.01mm,Insertion accuracy
供料器数量Number of Feeder	选配7支/10支，Optional 7/10 sets
理论速度Theoretical Speed	插件0.19秒/点，过板3秒/件，Insert 0.19 sec/pos,transfer 3 sec/pcs
PCB尺寸	过板尺寸最大L430*W290mm,插件范围最大L320*W265mm,(以上左→右)
PCB Size	Max.PCB passing size L430*W290mm,Max.insertion range L320*W265mm,above L→R
插入方向&跨距	标配：-90°~+90°,选配：360°,增量为1°;2.5/3.5/5.0/7.5/10.0mm可按跨距选配组合定制
Insertion Angle&Lead Span	Std.:-90°~+90°,Opt.:360°,1°increment;2.5/3.5/5.0/7.5/10.0 mm,configurable by span.
元件种类&规格	适用于立式编带封装料，编带孔距12.7/15mm;元件最大高度23mm,最大直径13mm(可定制)
Component Type&Size	Applicable to radial tape packaging component,paper hole distance 12.7/15 mm.max.height 23 mm.max. diameter 13 mm,customizable
元件剪脚&弯脚	剪脚长度1.2~2.2mm(可调);弯角角度5~45°(可调)
Lead Trimming &Bending	Component lead trimming length1.2~2.2mm;component lead bending angle 5~45°
控制系统	Windows操作系统中英文界面、视窗平台、液晶显示
Control Sys.	Windows OS with Chinese/English Interface,Windows Platform,LCD Display
功能配置	Al智能图像扫描系统、AI智能识别编程系统、AI智能Mark识别补偿系统、Al智能防呆系统、Al智能Badmark识别系统、AI智 能防错料系统、AI智能识别补件系统、AI实时数据跟踪系统、MES管理系统、远程技术支持
Functional Configuration	AI Vision Sys.Al Programming Sys.AI Mark Compensation Sys.Al Error-Proofing Sys. (Poka-Yoke).AI Badmark Recognition Sys.AI Component Verify Sys.AI Auto-Repair Sys.AI Real-Time Monitoring Sys.MES Integration Sys.Remote Support Sys.
