NTRODUCTION:
1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed
2. Automatic power system, inverter control, automatic board in-load feature.
3. Flux sprayer using transverse Japanese spray nozzle and driving by stepper motor, spray range is selective, PLC controlled, accurate and reliable.
4. Flux recovery container drawer design, easy to clean.

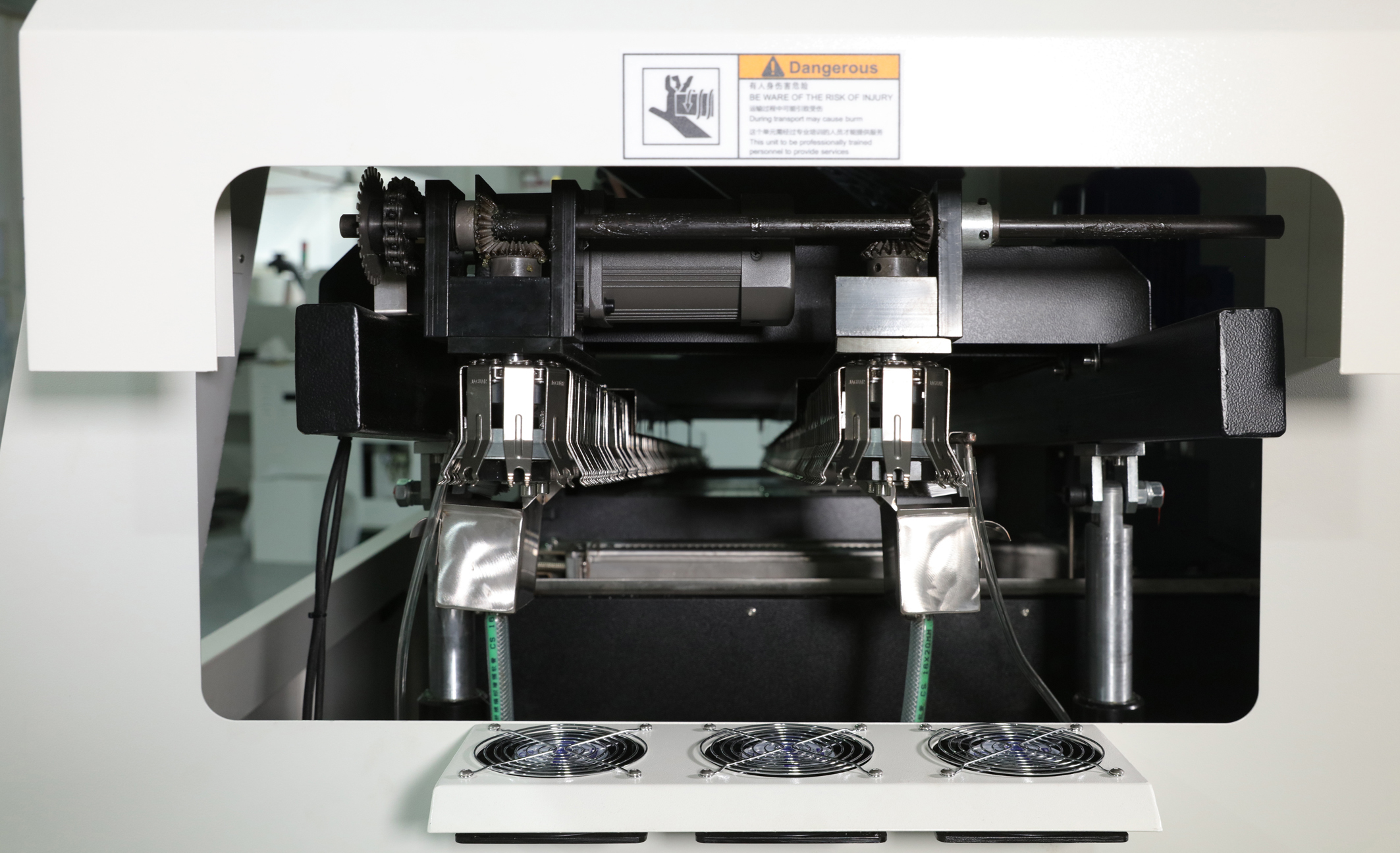

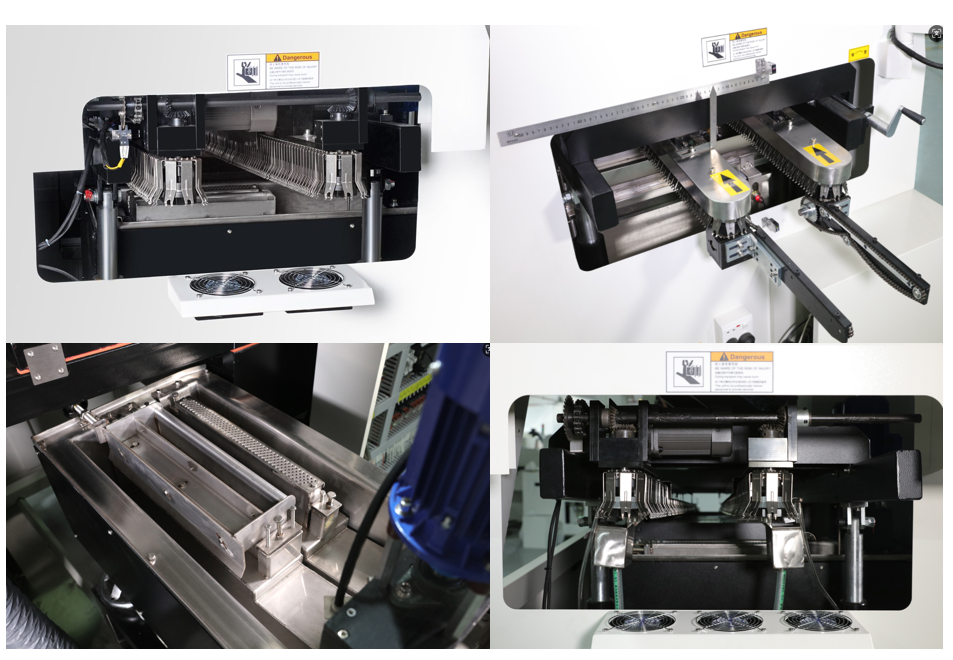

5. Conveyor equiped 3 width adjustable screws, the conveyor transmission is more stable, no PCB falling risk.
6. Titanium solder fingers, high strengthened double v-groove with tin resistant
7. PID close loop controlled hot air pre-heaters, preheating system uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.
8. Pre-heat passage modular design, environmental protection and safety, convenient for cleanup.
9. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.
8. Solder pot's inpeller material is cast iron, never corrode, solder pot with oxidation jacket, low solder dross
11. Timer startup feature for solder pot, solder melted in within 90 minutes.
12. Automatic finger cleaner equipped.
13. With black box memory function, the machine can always store the SPC data, improve work efficiency.
14. Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.

General specification	Dimension; 3600*1400*1560MM
	Weight:Approximately: 1100kg
	Start Up Power:Approx 24KW
	Normal running power: 6-8KW
	Power supply :3ph,AC380V/220V 50HZ
	Control systems:PC With Window 7+PLC
	PCB counter
Conveyor systems	Direction: Left to Right ,Front Fix(R to L)
	Titanium Alloy V shape finger
	300mm PCB loading buffer at entrance
	Conveyor speed control method: Motor(Panasonic)
	Conveyor speed:300-2000mm
	Conveyor angle:4-7°
	PCB Component Height”Top 120mm bottom:15mm
Spay Flux Systems	Stepper motor drive reciprocating Spray
	7-UP ST-8 Nozzles
	The capacity of Flux is 6.5/liter
	Flux auto Feeding (Option)
	Spary air pressure:3-5bar
	Modular structure for easy maintenance
Heating system	Heating zones :Bottom 3 zones,
	The Length of heating zones:1450mm
	Heating method:Forces hot air /
	Heating zones modularization easy to maintenance

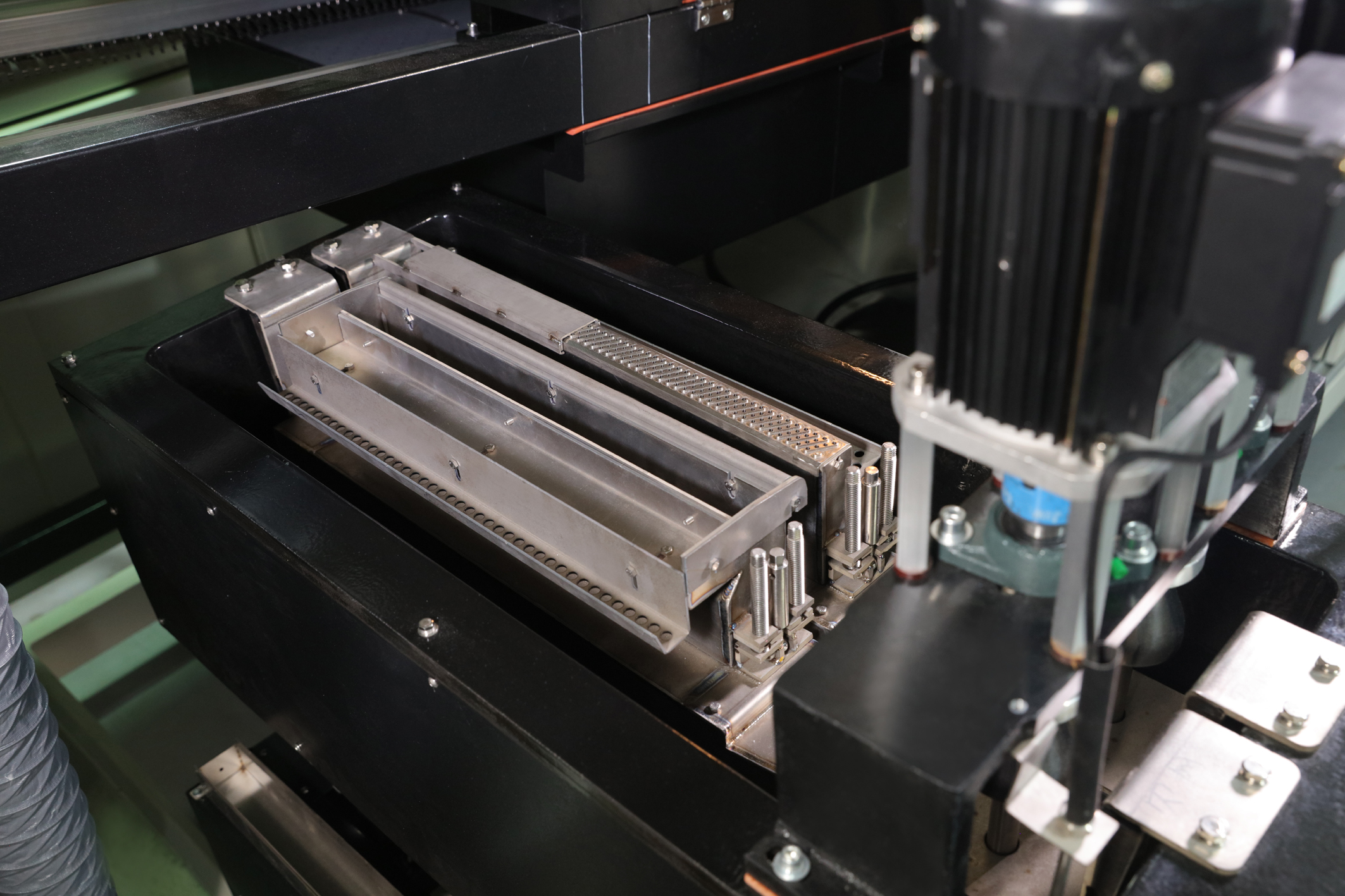

Solder pot	The capacity of solder pot :280KG
	Two wave :Turbulence Wave and Lambda 2nd Wave
	Materials :Titanium alloy (Op:Cast iron enamel)
	Auto Solder Pot Moving (go in, go out ,up,down)
	Cleaning Finger systems.
