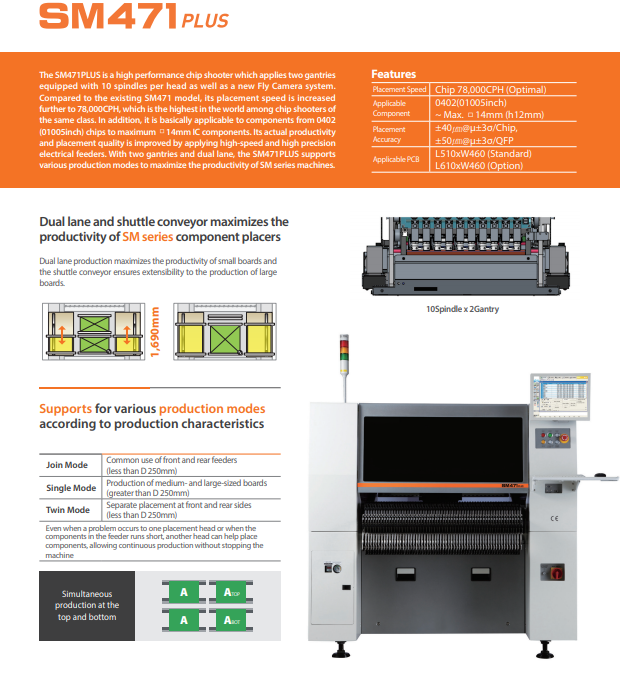

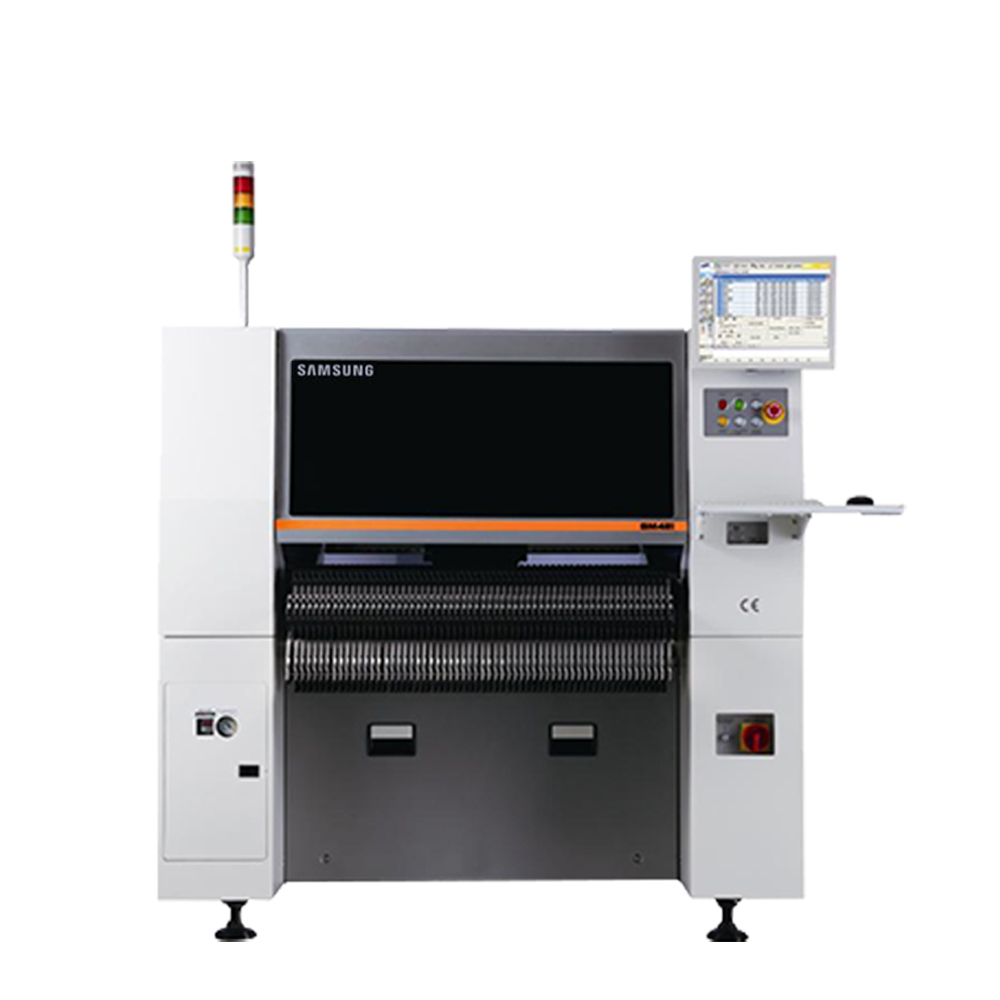

The Samsung SM471 is a high-speed Chip Mounter equipped with 10 axes for each mounting head and dual-boom
Patch speed 75,000 CPH
PCB size 510 (L) * 460 (W)
Model:
SM471plus
Brand:
Hanwha

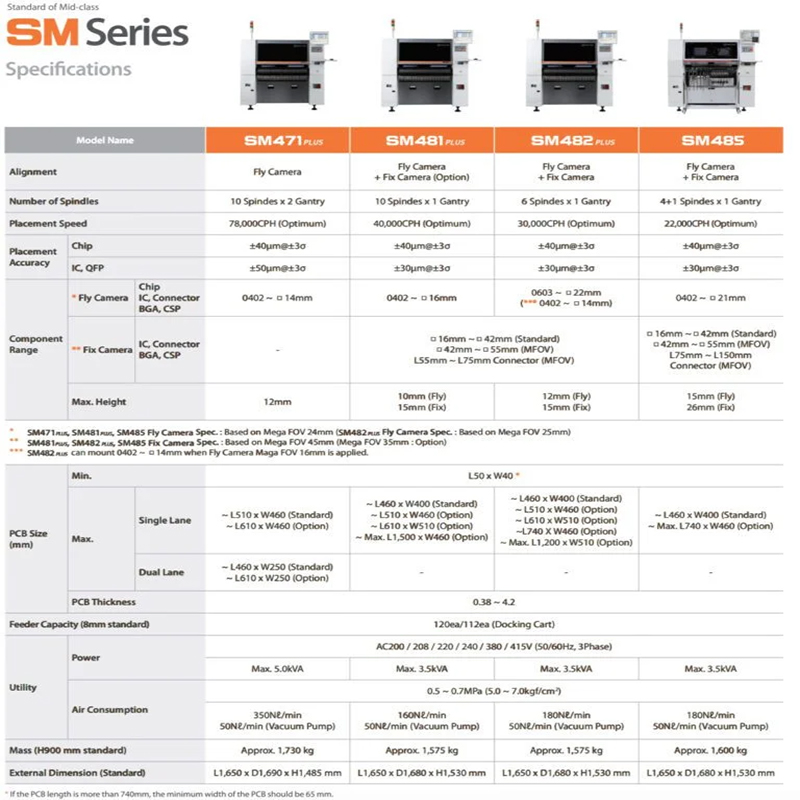

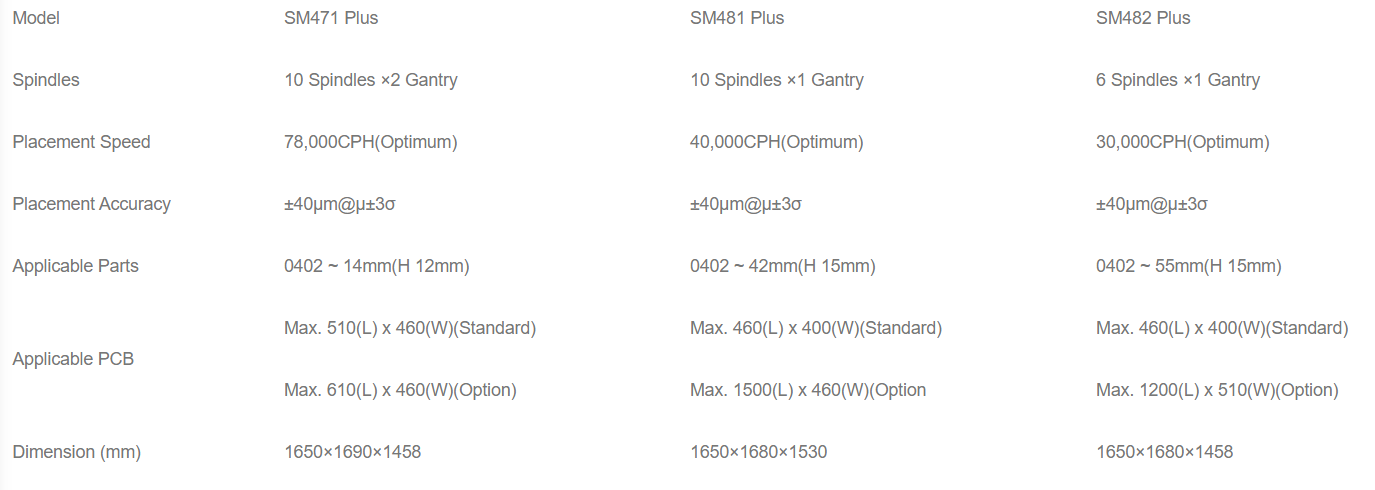

Specification
Model
SM471 Plus
SM481 Plus
SM482 Plus
Spindles
10 Spindles ×2 Gantry
10 Spindles ×1 Gantry
6 Spindles ×1 Gantry
Placement Speed
78,000CPH(Optimum)
40,000CPH(Optimum)
30,000CPH(Optimum)
Placement Accuracy
±40μm@μ±3σ
±40μm@μ±3σ
±40μm@μ±3σ
Applicable Parts
0402 ~ 14mm(H 12mm)
0402 ~ 42mm(H 15mm)
0402 ~ 55mm(H 15mm)
Applicable PCB
Max. 510(L) x 460(W)(Standard)
Max. 460(L) x 400(W)(Standard)
Max. 460(L) x 400(W)(Standard)
Max. 610(L) x 460(W)(Option)
Max. 1500(L) x 460(W)(Option
Max. 1200(L) x 510(W)(Option)
Dimension (mm)
1650×1690×1458
1650×1680×1530
1650×1680×1458
Key Features of the Hanwha SM471 Plus:
1. Industry-Leading Speed:
- Achieves a placement speed of up to 78,000 components per hour (CPH) under optimized conditions.
- Ideal for mass production with high throughput requirements.
2. Dual Gantry System:
- Equipped with dual gantries and ten placement heads per gantry, operating independently to maximize efficiency.
- Designed for high-speed, parallel component placement.
3. Wide Component Range:
- Handles components ranging from 0201 metric (0.25mm x 0.125mm) to larger devices up to 14mm in height.
- Suitable for placing resistors, capacitors, ICs, and other components.
4. Optimized Vision Systems:
- High-resolution vision cameras ensure precise alignment and placement of components.
- Supports multi-PCB recognition and real-time correction for alignment accuracy.
5. Flexible Feeder Configuration:
- Supports various feeder types, including tape, tray, and stick feeders.
- High feeder capacity enables simultaneous loading of multiple components for diverse assembly needs.
6. User-Friendly Software:
- Advanced operating software with features for programming, monitoring, and diagnostics.
- Simplifies production management and enhances traceability.
7. Enhanced Reliability:
- Designed for long-term, 24/7 operation with robust components and minimal downtime.
- Efficient maintenance routines reduce production disruptions.
8. Compact Design:
- Space-saving architecture optimizes floor space while delivering powerful performance.
- Designed for seamless integration into existing SMT lines.
9. Environmental Considerations:
- Incorporates energy-saving features and improved efficiency to reduce operational costs.
