REWORK STATION
Bga rework station 783
●Integrated design of top heater with efficient ceramic heater; Air source, including compressed air and nitrogen, is changed freely to meet repairing requests.
●It is convenient to use the bottom and top heater in the meantime by the synchronized operation and electric lift system.
●Large size IR heater, high-performance heat pipes, and the micro-crystal plate so that preheat PCB
●It is convenient to use the bottom and top heater in the meantime by the synchronized operation and electric lift system.
●Large size IR heater, high-performance heat pipes, and the micro-crystal plate so that preheat PCB
PRODUCT DETAIL

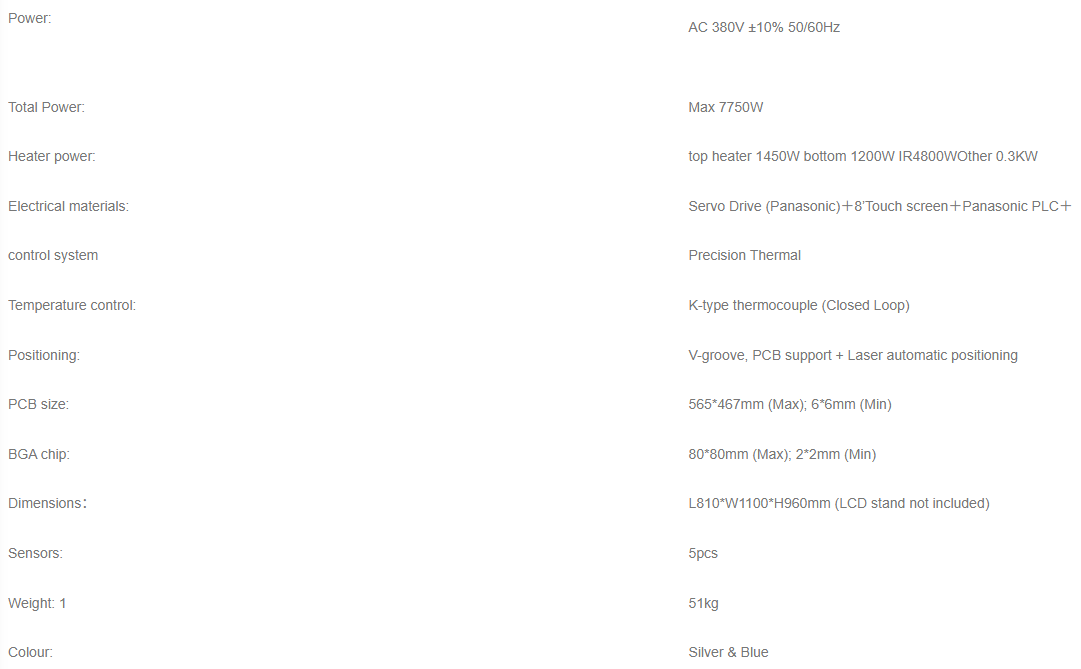

BGA REWORK STATION 783
| Power: |
AC 380V ±10% 50/60Hz
|
| Total Power: | Max 7750W |
| Heater power: |
top heater 1450W bottom 1200W IR4800WOther 0.3KW
|
| Electrical materials: |
Servo Drive (Panasonic)＋8’Touch screen＋Panasonic PLC＋
|
| control system |
Precision Thermal
|
| Temperature control: |
K-type thermocouple (Closed Loop)
|
| Positioning: |
V-groove, PCB support + Laser automatic positioning
|
| PCB size: |
565*467mm (Max); 6*6mm (Min)
|
| BGA chip: |
80*80mm (Max); 2*2mm (Min)
|
| Dimensions： |
L810*W1100*H960mm (LCD stand not included)
|
| Sensors: | 5pcs |
| Weight: 1 | 51kg |
| Colour: | Silver & Blue |
